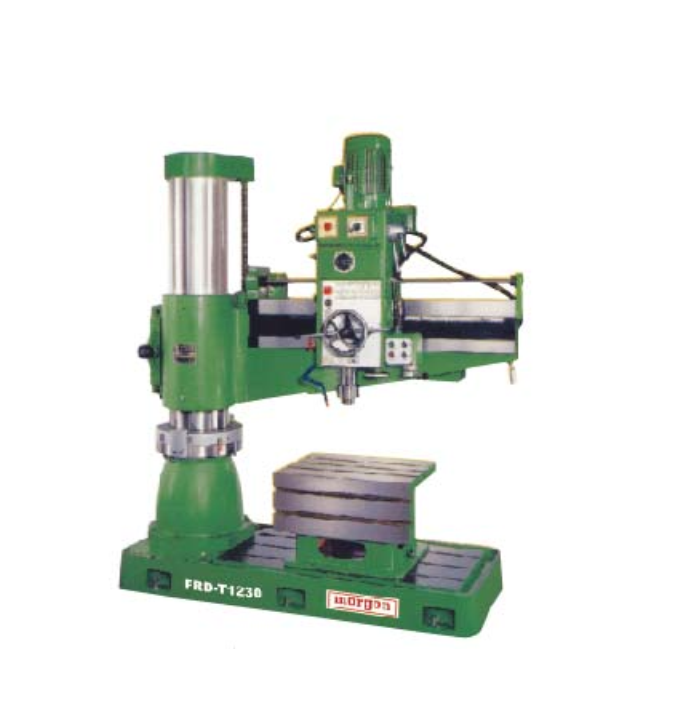

Morgon FRD-T1230 Radial Drilling Machine (42/55 mm)

Drilling cap. - steel / cast iron: 42/55 mm

Tapping cap. - steel / cast iron: 25/38 mm

Spindle stroke: 270 mm

Horizontal travel of headstock: 880 mm

Base size: 1720 x 715 x 185 mm

Table size: 635 x 520 x 415 mm

Spindle center to column surface: 330 ~ 1230 mm

Spindle nose to base: 467 ~ 1360 mm

Spindle speed (60Hz): 44 ~ 1500 rpm , (12 steps)

Spindle taper: MT#4

Spindle motor: 3 HP (2 speed motor)

Net weight: 2100kgs
