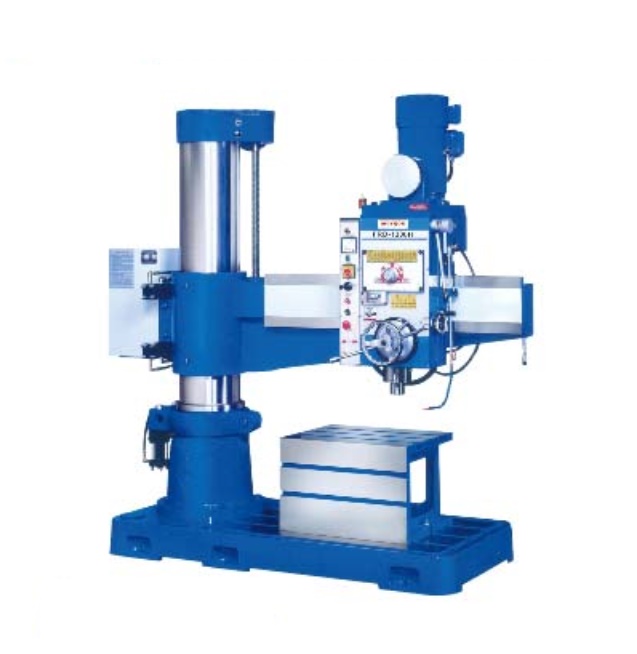

Morgon FRD-1300H 摇臂钻床 (55/66 mm)

Drilling cap. - steel / cast iron: 55 / 66 mm

Tapping cap. - steel / cast iron: M50 / M60

Boring cap. - steel / cast iron: 100 / 160 mm

Spindle stroke:  250 mm

Horizontal travel of headstock: 925 mm

Column diameter: Ø300 mm

Base size: 1800 x 800 x 170 mm

Table size: 650 x 500 x 410 mm

Spindle center to column surface: min. 330 mm/max. 1260 mm

Spindle nose to base: min. 290 mm/max. 1210 mm

Spindle speed: 44 ~ 1500 rpm , (12 steps)

Spindle taper: MT#4

Spindle motor: 5 HP (4P/8P)

Net weight: 2150 kgs
