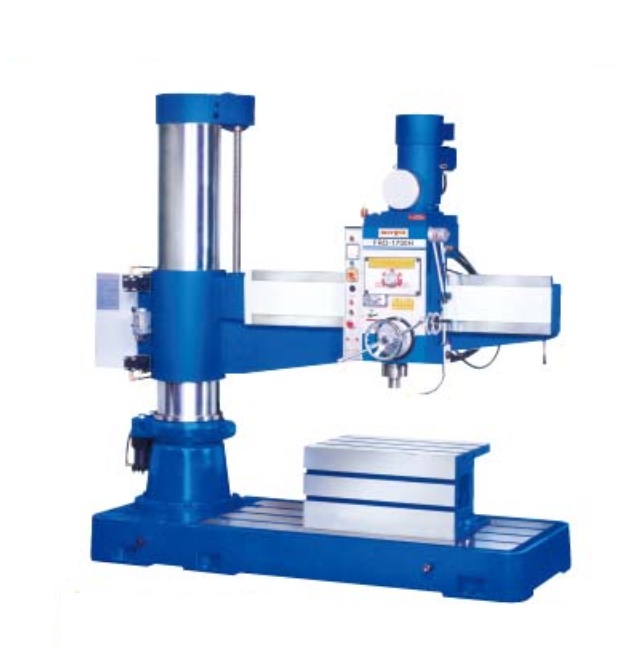

Morgon FRD-1700H Radial Drilling Machine (60/70 mm)

Drilling cap. - steel / cast iron: 60/70 mm

Tapping cap. - steel / cast iron: M50 / M60

Boring cap. - steel / cast iron: 126/ 180 mm

Spindle stroke:  250 mm

Horizontal travel of headstock: 1300 mm

Column diameter: Ø336 mm

Base size: 2360 x 940 x 230 mm

Table size: 800 x 540 x 400 mm

Spindle center to column surface: min. 360 mm/max. 1650 mm

Spindle nose to base: min. 344 mm/max. 1410 mm

Spindle speed:  30 ~ 1500 rpm, (12 steps)

Spindle taper: MT#5

Spindle motor: 7.5 HP (4P/12P)

Net weight: 3150 kgs
