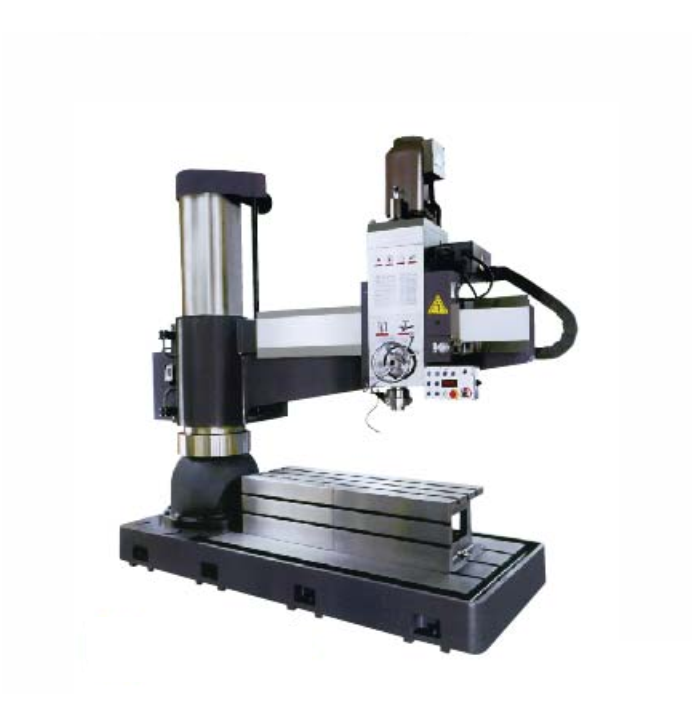

Morgon FRD-2500H Radial Drilling Machine (85/105 mm)

Drilling cap. - steel / cast iron: 85/105 mm

Tapping cap. - steel / cast iron: M65 / M75

Boring cap. - steel / cast iron: 150 / 200 mm

Spindle stroke: 400 mm

Horizontal travel of headstock: 2030 mm

Column diameter: Ø480 mm

Base size: 3400 x 1200 x 250 mm

Table size: 800 x 540 x 400 equal x 2pcs

Spindle center to column surface: min. 420 mm/max. 2500 mm

Spindle nose to base: min. 560 mm / max. 1800 mm

Spindle speed: H.L Variable speed by inverter 20 - 1300 rpm

Spindle taper:MT#6

Spindle motor: 10 HP (OPT.1 5)

Net weight: 7700 kgs
