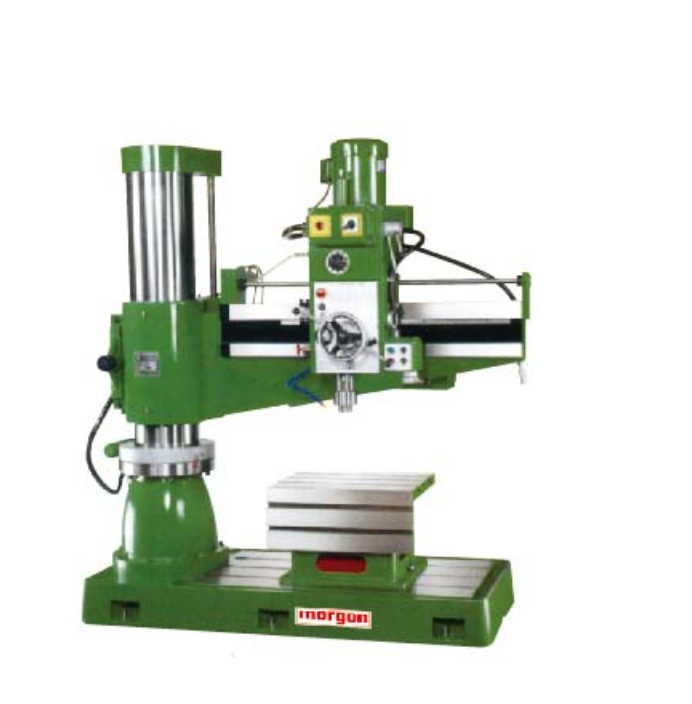

Morgon FRD-C1600H 摇臂钻床 (50/60 mm)

Drilling cap. - steel / cast iron: 50/60 mm

Tapping cap. - steel / cast iron: 40/50 mm

Spindle stroke: 270 mm

Horizontal travel of headstock: 1320 mm

Base size: 2550 x 970 x 200 mm

Table size: 630 x 500 x 500 mm

Spindle center to column surface:  330 ~ 1650 mm

Spindle nose to base: 465 ~ 1405 mm

Spindle speed (60Hz): 56 ~ 1450 rpm , (12 steps)

Spindle taper: MT#5

Spindle motor: 5 HP (2 speed motor)

Net weight: 3300 kgs
