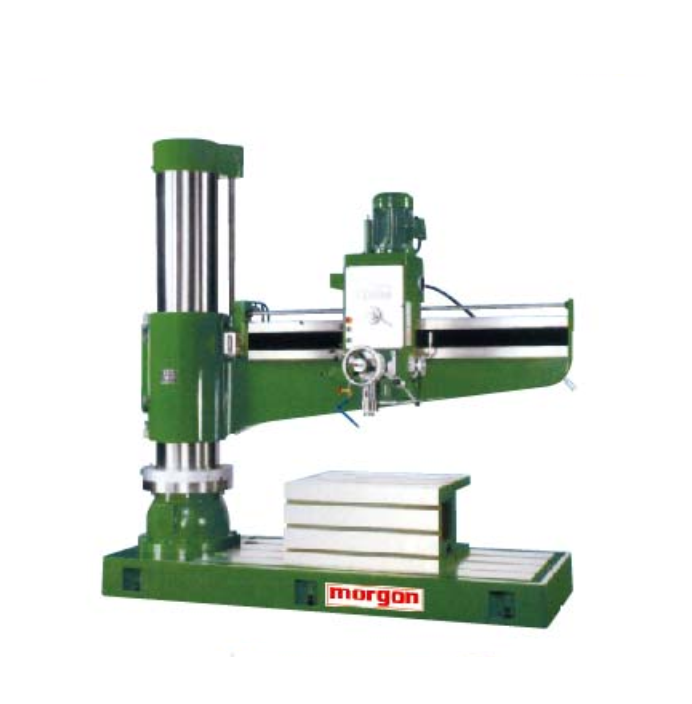

Drilling cap. - steel / cast iron: 65/70 mm
Tapping cap. - steel / cast iron: 50 / 60 mm
Spindle stroke: 370 mm
Horizontal travel of headstock: 1510 mm
Base size: 2920 x 1120 x 260 mm
Table size: 1000 x 800 x 500 mm
Spindle center to column surface: 440 ~ 2060 mm
Spindle nose to base: 395 ~ 1950 mm
Spindle speed (60Hz): 35 ~ 1890 rpm , (12 steps)
Spindle taper: MT#5
Spindle motor: 7-1/2 HP
Net weight: 5600 kgs
