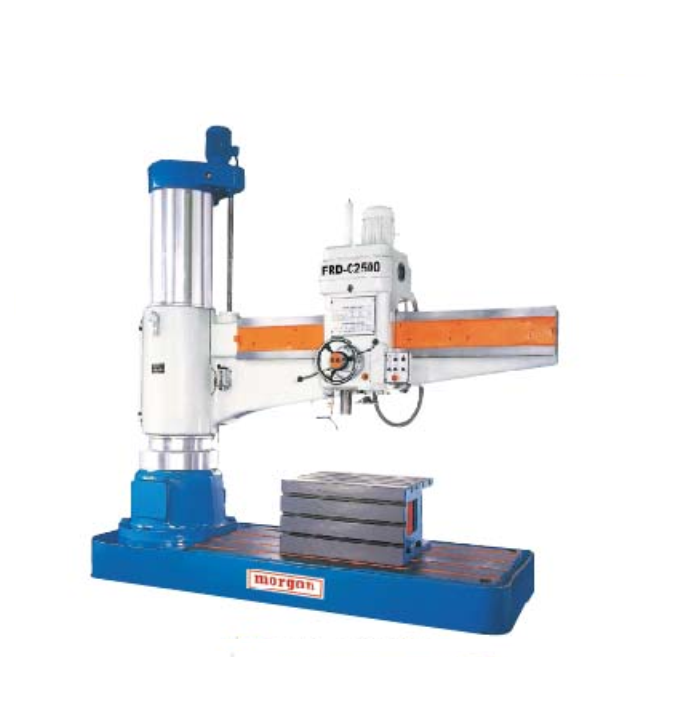

Morgon FRD-C2500 摇臂钻床 (80/100 mm)

Drilling cap. - steel / cast iron: 80/100 mm

Tapping cap. - steel / cast iron: 65 / 75 mm

Spindle stroke: 450 mm

Horizontal travel of headstock: 2000 mm

Base size: 3520 x 1400 x 320 mm

Table size: 1000 x 800 x 560 mm

Spindle center to column surface: 500 ~ 2500 mm

Spindle nose to base: 550 ~ 2000 mm

Spindle speed (60Hz): 16 ~ 1250 rpm , (16 steps)

Spindle taper: MT#6

Spindle motor: 10 HP

Net weight: 11000 kgs
