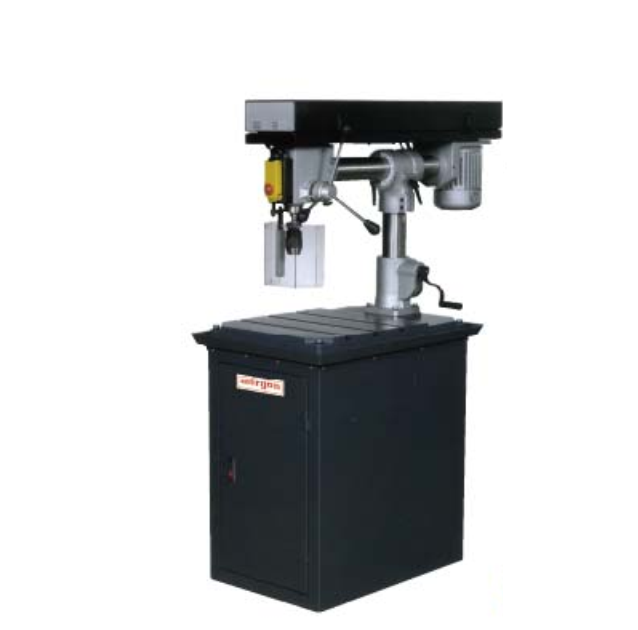

Morgon MD-16TS Radial Drill Press (16 mm)

Swing: 1215 mm

Max. Drillings capacity: 16 mm

Spindle taper: MT#2

Chuck size: 16 mm

Spindle stroke: 80 mm

Spindle speeds: 50 Hz: 9 steps: 190~2800 rpm

Head tilting: 45 deg

Throat: 500 ~ 740 mm

Table size: 500 x 530 mm

Motor: 3/4 HP

Net weight: 230 kgs
