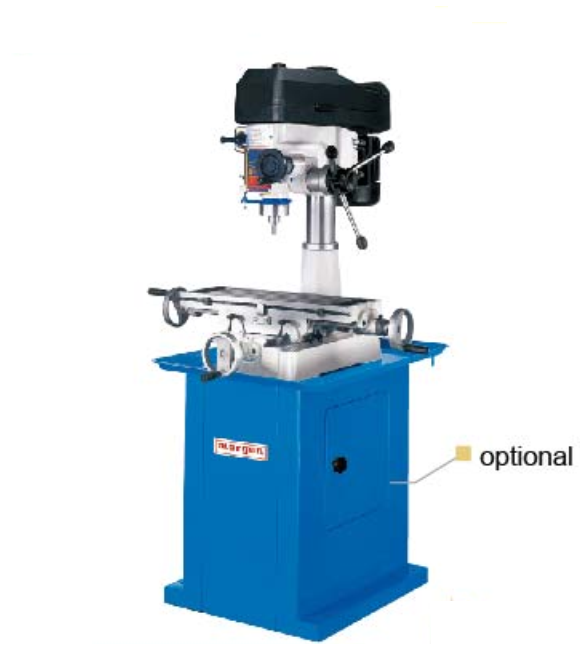

Morgon MD-25(Belt) Mill/ Drill Belt Type Machine (25/76/20 mm)

Drilling /face mill / end mill cap. ( steel ): 25/76/20 mm

Tapping cap. ( optional ): 16 mm

Longitudinal travel: 380 mm

Cross travel: 150 mm

Spindle stroke: 95 mm

Column diameter: Ø92 mm

Table size: 585 x 190 mm

T-slot ( width x no. x pitch ): 14 x 4 x 24 mm

Spindle speed: 110~2580 rpm (12 steps)

Spindle speed ( optional ): -

Spindle taper: MT#3 or R8

Spindle motor: 3/4 HP

Net weight: 160 kgs
