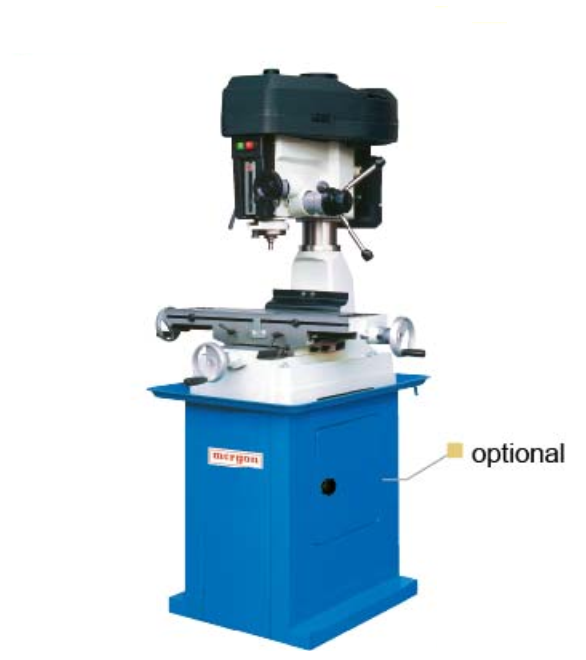

Morgon MD-31 Mill/ Drill Belt Type Machine (32/76/20 mm)

Drilling /face mill / end mill cap. ( steel ): 32/76/20 mm

Tapping cap. ( optional ): 16 mm

Longitudinal travel: 460 mm

Cross travel: 190 mm

Spindle stroke: 130 mm

Column diameter: Ø115 mm

Table size: 730 x 210 mm

T-slot ( width x no. x pitch ): 16 x 4 x 26 mm

Spindle speed: 150~3000 rpm (12 steps)

Spindle speed ( optional ): 75~3000 rpm (24 steps)

Spindle taper: MT#3 or R8

Spindle motor: 1.5 HP

Net weight: 230 kgs

Detail

Datasheet
