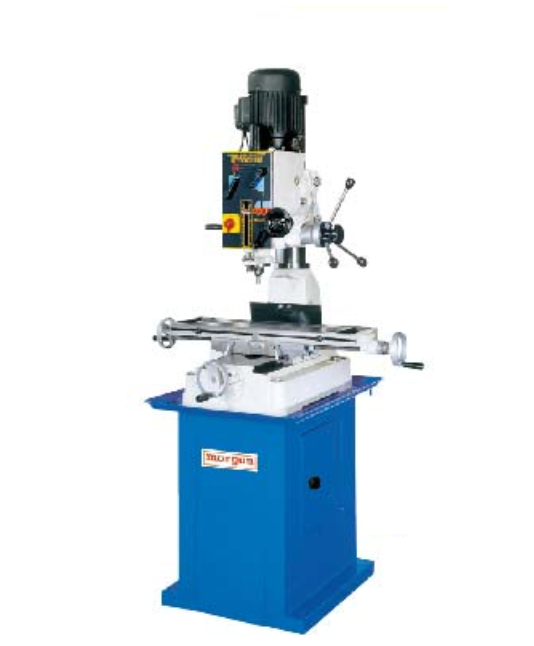

Morgon MD-40 Mill/ Drill Gear Head Type Machine (40/100/20 mm)

Drilling /face mill / end mill cap. ( steel ): 40/ 100/ 20 mm

Tapping cap. ( optional ): 20 mm

Longitudinal travel: 460 mm

Cross travel: 230 mm

Spindle stroke: 130 mm

Column diameter: Ø115 mm

Table size: 730 x 210 mm

T-slot ( width x pitch ): 16 x 26 mm

Spindle speed: 65~1550 rpm (6 steps)

Spindle speed ( optional ): 65~3100 rpm (12 steps)

Spindle taper: MT#3 or R8

Spindle motor: 1 HP : 3Ø / 1.5 HP: 1Ø

Net weight: 270 kgs
