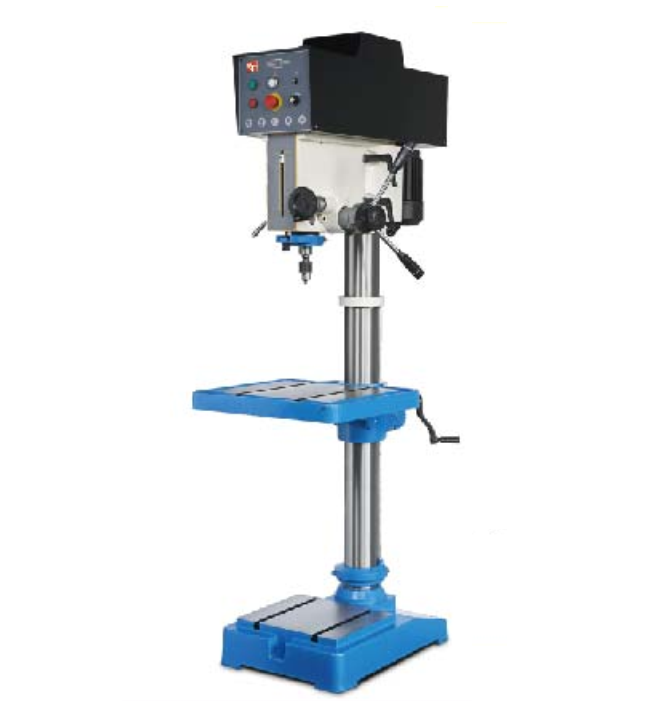

Morgon MD-402VS AC 变频调速钻床 (32/76/20 mm)
制造商: Morgon Model: MD-402VS 来源: Taiwan 保障: 12 Month - 报价要求
- 报价要求
- 联系
Drilling /face mill / end mill cap. ( steel ): 32/76/20 mm
Tapping cap. ( optional ): 20 mm
Max. spindle nose to table: 780 mm
Spindle travel: 165 mm (PF=107 mm)
Column diameter: Ø115 mm
Table size: 555 x 495 mm
Number of power downfeed: 3 (0.12-0.18025 per/rev.)
T-slot (width x pitch): 16 x 26 mm
Spindle speed: 0~2000 rpm
Spindle taper: MT#3
Spindle motor: 1-1/2 HP
N.W./G.W.: 280 / 310 kgs
