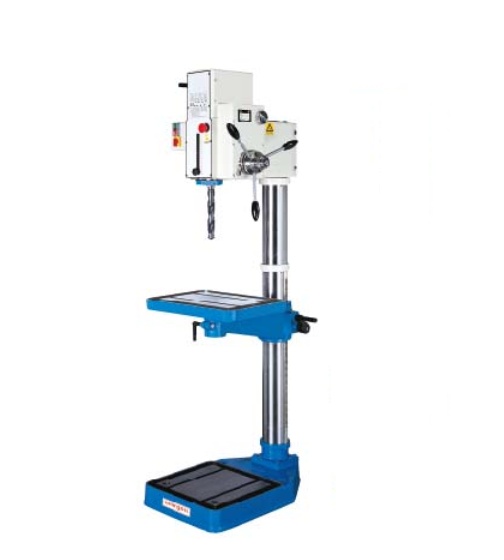

Morgon MD-43C Mill/Drill Scandinavian Style Machine (32 mm)

Drilling cap. - steel: 32 mm

Spindle troke: 150 mm

Column diameter: Ø120 mm

Table size: 600 x 300 mm

T-slot (width x pitch): 14 x 24 mm

Spindle center to column: 350 mm

Spindle nose to table: 800 mm

Spindle nose to base: 1300 mm

Spindle speed: 90~3580 rpm (2 speeds)

Spindle taper: MT#3 (optional MT#4)

Spindle motor: 2 HP : 3Ø

Net weight: 260 kgs
