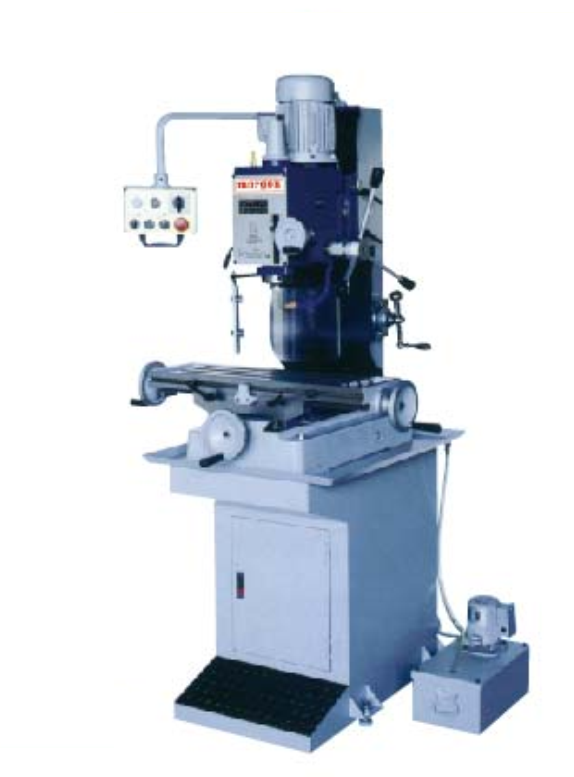

Morgon MD-450G Mill/Drill Belt & Gear Drive Type Machine (76 mm)

Drilling /face mill cap. ( steel ): 76 mm

Tapping cap. ( steel): 20 mm

Longitudinal travel: 430 mm

Cross travel: 285 mm

Spindle travel: 120 mm

Column diameter: 75  mm

Table size: 730 x 210 mm

T-slot:  16 mm

Spindle speed: 60~1500 rpm (60 HZ)

Spindle taper: MT#3 or R8

Spindle motor: 1 HP

Net weight: 400 kgs

Detail

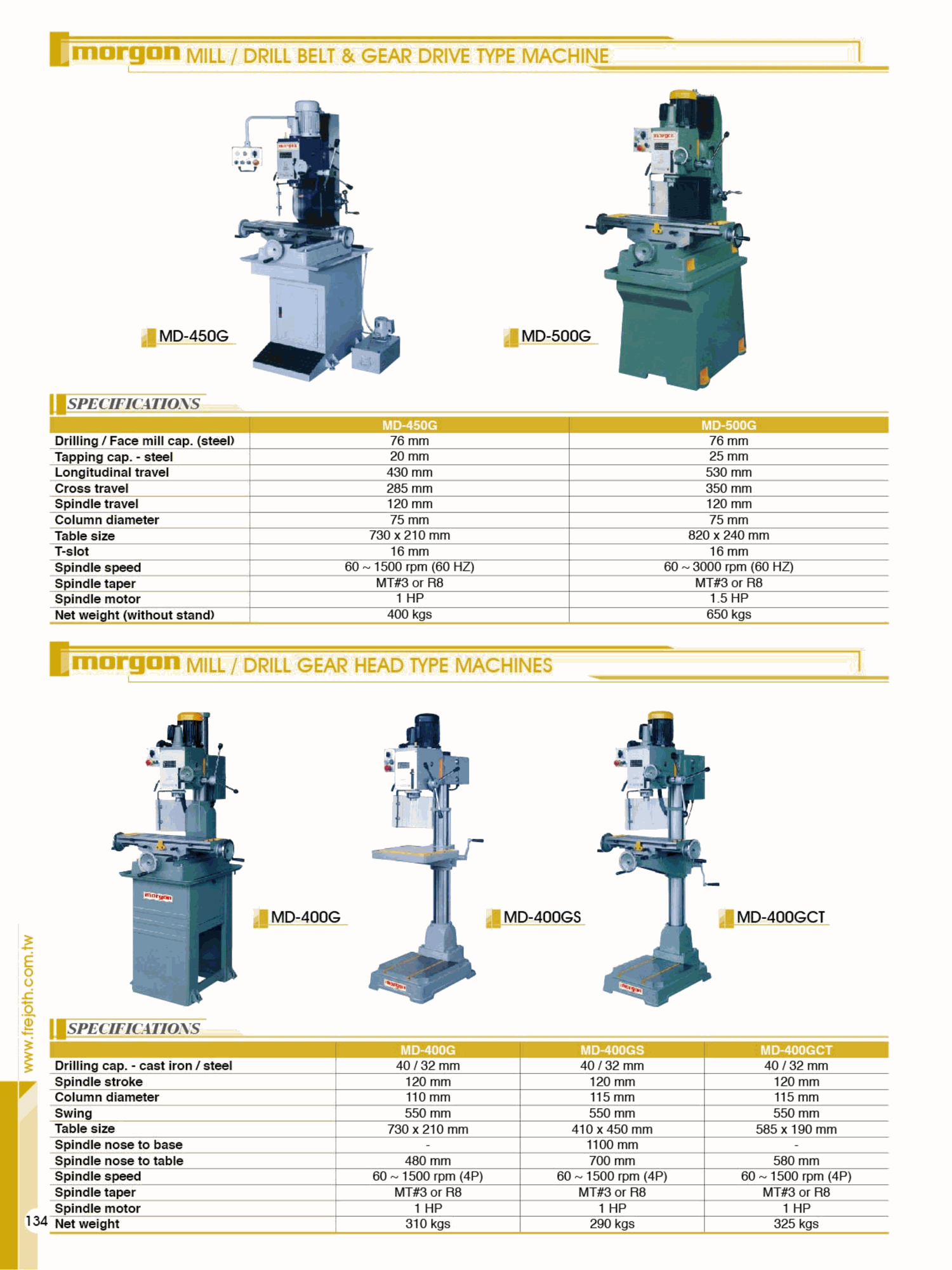

Datasheet
