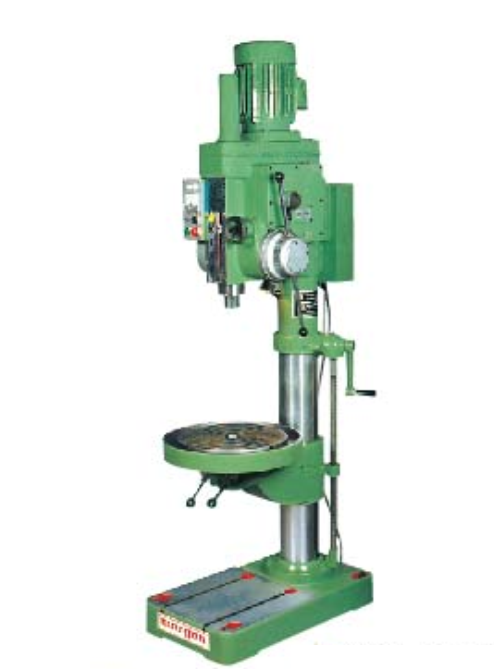

Morgon MD-530FS 立式钻机 (40/50 mm)
制造商: Morgon Model: MD-530FS 来源: Taiwan 保障: 12 Month - 报价要求
- 报价要求
- 联系
Swing: 530
Drilling / Tapping capacity
- Mild steel: 40 mm / M25
- Cast iron: 50 mm / M32
Boring capacity mild steel / cast iron: 80 / 100 mm
Spindle stroke auto / manual: 170 / 180 mm
Auto feed number and range: No.3 - 0.08 / 0.16 / 0.26 mm/min
Spindle taper: MT#4
Spindle speed: 60 HZ- 52~1710 rpm
Spindle motor: 1.5 kw / 4/8P
Table size/ RD - SQ: 510 mm - 560 x 460 mm
Spindle nose to table surface top: 10~710 mm
Table vertical travels: 520 mm
Base: 460 x 810 mm
Net weight: 650 kgs
