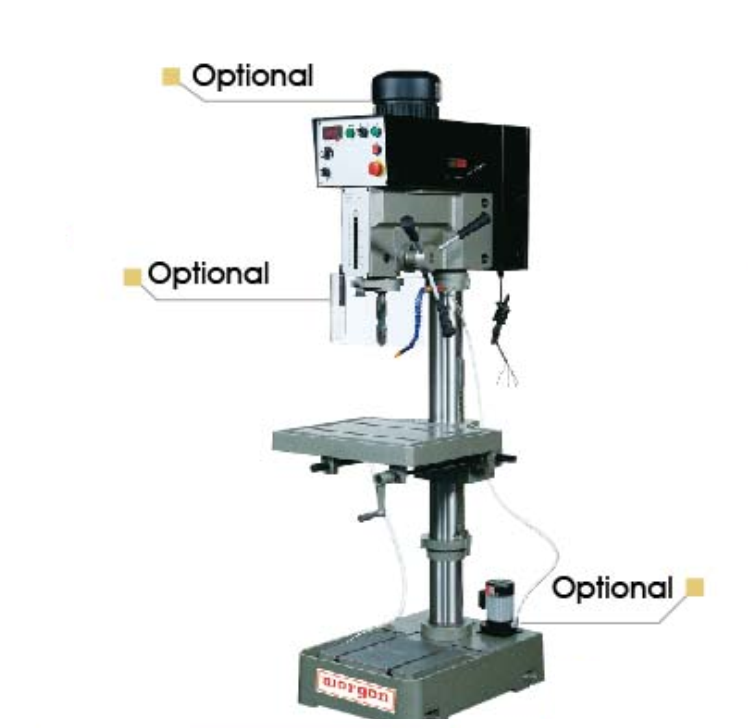

Morgon MDP-32EV Variable Speed Drilling Machine (32-MT#3)

Drilling cap. - steel / cast iron: steel : 32-MT#3 , 40-MT#4 (option)

Tapping cap. - steel: 19 mm

Spindle travel: 150 mm

Column diameter: 115 mm

Swing: 530 mm

Base size: 685 x 485 mm

Table size: 560 x 470 mm

Spindle nose to base: 1180 mm

Spindle nose to table: 690 mm

Spindle speed: 65~2000 rpm (2 steps)

Spindle taper: MT#3 (#4)

Spindle motor: 2 HP

Net weight: 340 kgs
