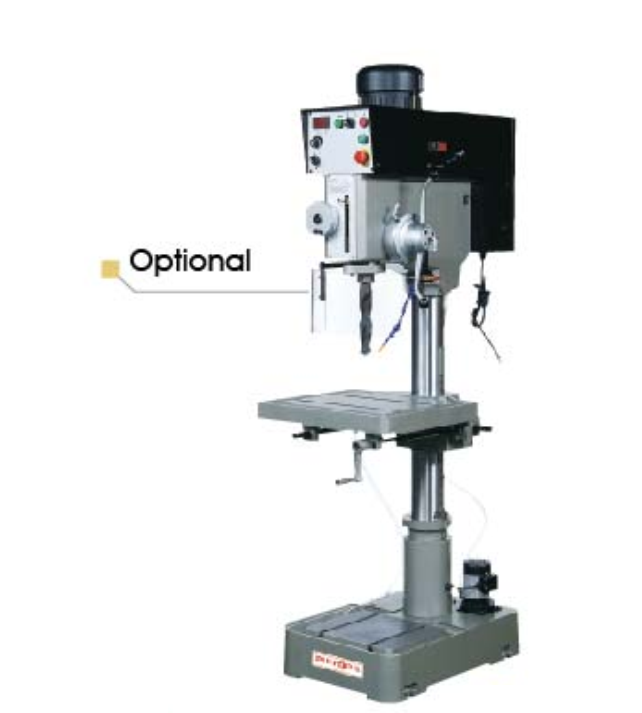

Morgon MDP-40VSF Variable Speed Drilling Machine (40/45 mm)

Drilling cap. - steel / cast iron: 40/45 mm

Tapping cap. - steel: 24 mm

Spindle travel: 150 mm

Column diameter: 115 mm

Swing: 530 mm

Base size: 685 x 485 mm

Table size: 560 x 470 mm

Spindle nose to base: 1140 mm

Spindle nose to table: 650 mm

Spindle speed: 65~2000 rpm (2 steps)

Spindle taper: MT#4

Spindle motor: 2 HP

Net weight: 385 kgs
