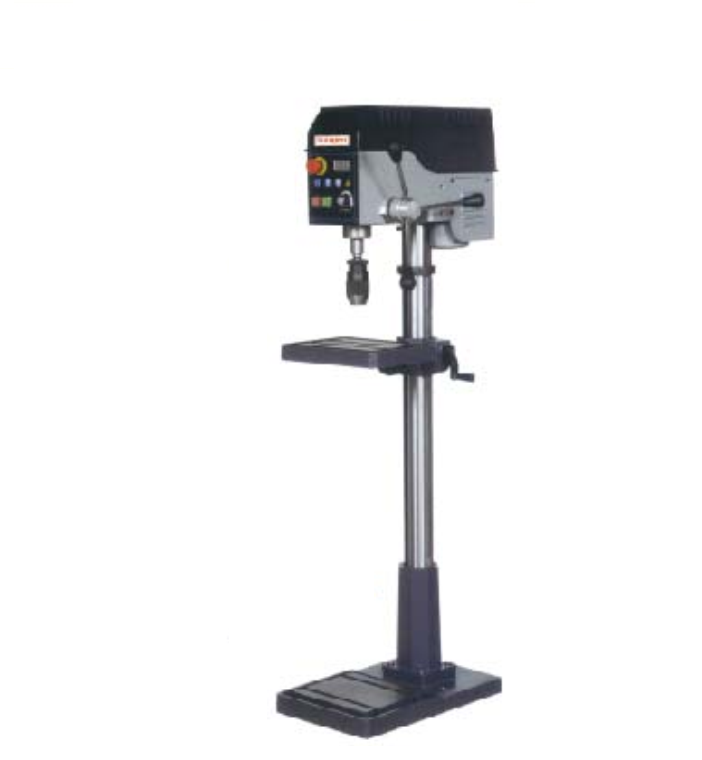

Morgon MK-20VSF 变速钻床 (20 mm)

Max. Drillings capacity: 20 mm

Spindle taper: MT3 / JT3, MT3 / JT4,  MT3 / B18, MT3 / B22

Max. Spindle stroke: 85 mm

Swing: 382 mm

Speed of spindle: 190~ 1900 rpm

Diameter of column: 80 mm

Max. Distance from spindle to table: 680 mm

Max. Distance from spindle to base: 1200 mm

Overall height: 1650 mm

Size of table:

- Round: 320 mm

- T-slot: 350 x 250 mm

Motor: 3 HP (2.3 kw)

Net weight: 102 Kgs

Datasheet
