| 制造商: | Morgon |

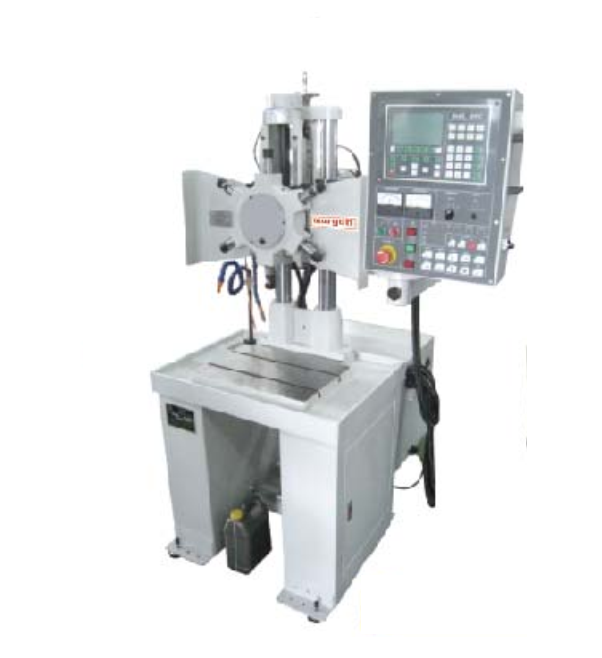

| Model: | MTD-12A |
| 来源: | Taiwan |
| 保障: | 12 Month |
Drilling / Tapping capacity:
- Mild steel: 12 mm / M12
- Cast iron: 14 mm / M14
Max. drilling depth: 150 mm
Cutting feedrate: 10000 mm/min
Spindle taper: Tr20 or TM 22 with ER20
Spindle motor: 2 speed 1.5/0.7 kw
Table size: 800 x 600 mm
Spindle nose to table surface top: 275~648 mm
Table head stroke: 370 mm
Net weight: 800 kgs
Datasheet
