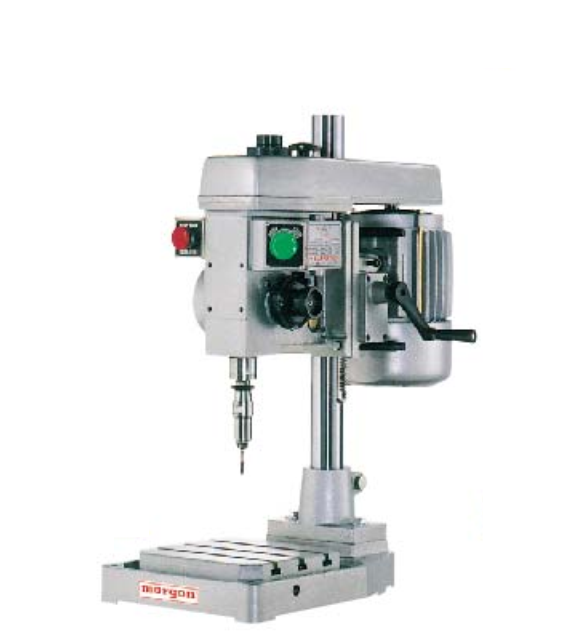

Morgon MTM-08V Gear Type Fully Automatic Tapping Machine (1~10 mm)

Tapping capacity: 1 ~ 10 mm

Spindle travel: 45 mm

Column diameter: Ø52 mm

Swing: 330 mm

Table size: 230 x 225 mm

Base size: 415 x 300 mm

Spindle speed 60HZ: 740 ~ 1670 mm (3 steps)

Spindle taper: JT2

Spindle motor - 3PH: 1/2 HP (4P)

Net weight: 97 kgs
