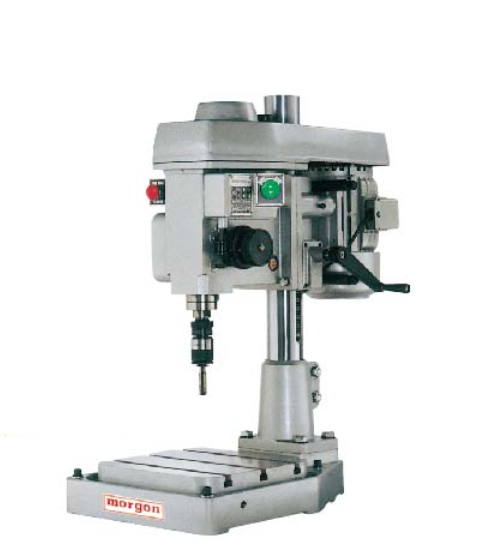

Morgon MTM-32V 齿轮式全自动攻丝机 (8~32 mm)

Tapping capacity: 8~32 mm

Spindle travel: 65 mm

Column diameter: Ø95 mm

Swing: 460 mm

Table size: 380 x 340 mm

Base size: 600 x 480 mm

Spindle speed 60HZ: 60 ~ 240 mm (3 steps)

Spindle taper: MT#3

Spindle motor - 3PH: 2 HP (6P)

Net weight: 250 kgs
