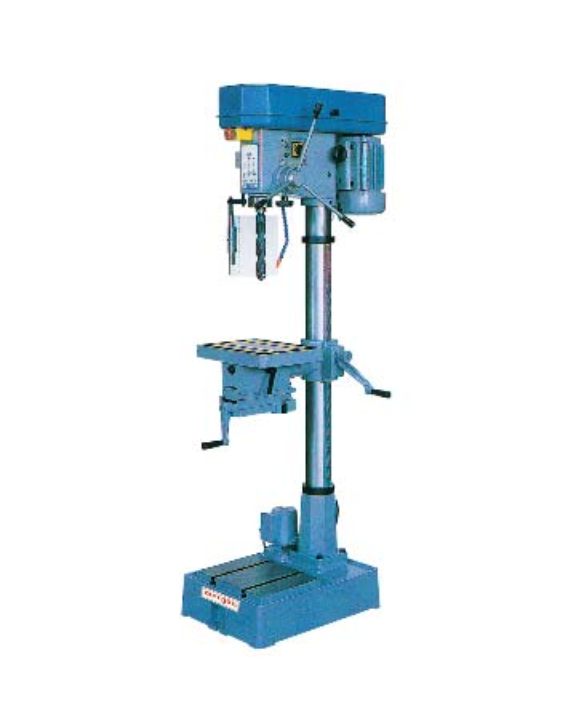

Morgon UMD-30P 欧式重型工业精密钻床 (Ø30 mm)

Drilling cap. - steel: Ø30 mm

Spindle troke: 125 mm

Column diameter: Ø92 mm

Quill diameter: Ø62 mm

Swing: 418 mm

Table size: 285 x 395 mm

Base size: 560 x 420 x 140 mm

Spindle speed: 138 ~ 2960 rpm (18 steps)

Spindle taper:  MT3#

Motor: 1 HP (4P/8P)

Net weight: 216 kgs
