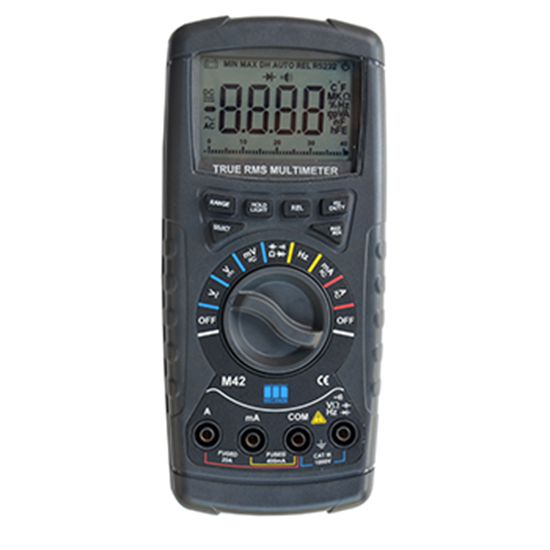

MOTWANE M42 数字万用表

Manufacturer: MOTWANE

Model: M42

Origin: India

Warranty: 12 months


Dimension(WxHxD): 94x205x36 approx.

Weight: 450. approx

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 60°C

Humidity: 80% RH @ 5 to 31, 50% RH @ 31 to 40 non condensing

Power Supply : 9V Battery Type 6F22 or equivalent

Power Consumption : 8mA typical.

Fuse Protection for ‘mA’ input terminal : 0.5 A/250V fast blow type ceramic fuse.

Fuse Protection for 20A input terminal : 20A/ 250V fast blow type ceramic fuse

DC Voltage:

600mV; 0.1mV; 600.0mV; ±(0.5% + 3); 1050V DC/AC rms

6V; 1mV; 6.000V; ±(0.5% + 3); 1050V DC/AC rms

60V ;10mV; 60.00V; ±(0.5% + 3); 1050V DC/AC rms

600V; 100mV; 600.0 V; ±(0.5% + 3); 1050V DC/AC rms

1000V; 1V ;1000V; ±(0.8% + 3); 1050V DC/AC rms

AC Voltage:

6V; 1mV; 6.000V; ±(1% + 5); 1050V DC/AC rms

60V; 10mV; 60.00V; ±(1% + 5); 1050V DC/AC rms

600V; 100mV; 600.0V; ±(1% + 5) ; 1050V DC/AC rms

750V; 1V; 750V; ±(1.2% + 8); 1050V DC/AC rms

DC "mV" range:

60mV; 0.01mV; 60.00mV; ±(0.5% + 3), 1000V DC/AC rms

600mV; 0.1mV; 600.0mV; ±(0.5% + 3), 1000V DC/AC rms

AC "mV" range:

60mV; 0.01mV; 60.00mV; ±(1% + 5), 1000V DC/AC rms

600mV; 0.1mV; 600.0mV; ±(1% + 5) , 1000V DC/AC rms

Resistance Range:

600 Ω; 0.1Ω; 600.0 Ω; ±(0.5% + 3), 1000V DC/AC rms

6 KΩ; 1Ω; 6.000 KΩ; ±(0.5% + 3), 1000V DC/AC rms

60 KΩ; 10 Ω; 60.00 KΩ; ±(0.5% + 3), 1000V DC/AC rms

600 KΩ; 100 Ω; 600.0 KΩ; ±(0.5% + 3), 1000V DC/AC rms

6 MΩ; 1 KΩ; 6.000 MΩ; ±(1% + 5), 1000V DC/AC rms

60 MΩ; 10 KΩ; 60.00 MΩ; ±(3% + 5), 1000V DC/AC rms

Capacitance Range:

40nF; 0.01nF; 39.99nF; ±(3.0% + 10), 1000V DC/AC rms

400nF; 0.1nF; 399.9nF; ±(3.0% + 10), 1000V DC/AC rms

4µF; 1nF; 3.999µF; ±(3.0% + 10), 1000V DC/AC rms

40µF; 10nF; 39.99µF; ±(3.0% + 10), 1000V DC/AC rms

400µF; 100nF; 399.9µF; ±(3.0% + 10), 1000V DC/AC rms

4000µF; 1µF; 3999µF; ±(5.0% + 20), 1000V DC/AC rms

Diode Test: 6V; 1mV; ≤ 2.85VDC; ≤1mA approx

Continuity Test: 600.0Ω; 0.1Ω; Meter Beeps at <60 Ω

Frequency Range:

10Hz; 0.001Hz; 9.999Hz; ±(0.1% + 3), 1000V DC/AC rms

100Hz; 0.01Hz; 99.99Hz; ±(0.1% + 3), 1000V DC/AC rms

1KHz; 0.1Hz; 999.9Hz; ±(0.1% + 3), 1000V DC/AC rms

10KHz; 1Hz; 9.999KHz; ±(0.1% + 3), 1000V DC/AC rms

100KHz; 10Hz; 99.99KHz ;±(0.1% + 3), 1000V DC/AC rms

1000KHz; 100Hz; 999.9KHz; ±(0.1% + 3), 1000V DC/AC rms

10MHz; 1KHz; 9.999MHz; ±(0.1% + 3) , 1000V DC/AC rms

Duty Cycle Measurement: 0.1%-99.9%; 0.1%; ±(0.5% + 3); 1000V DC/AC rms


Standard Accessories : Pair of Test leads, User Manual, Battery installed, Fuses, Carrying Bag.

Optional Accessories: Pair of test leads.
