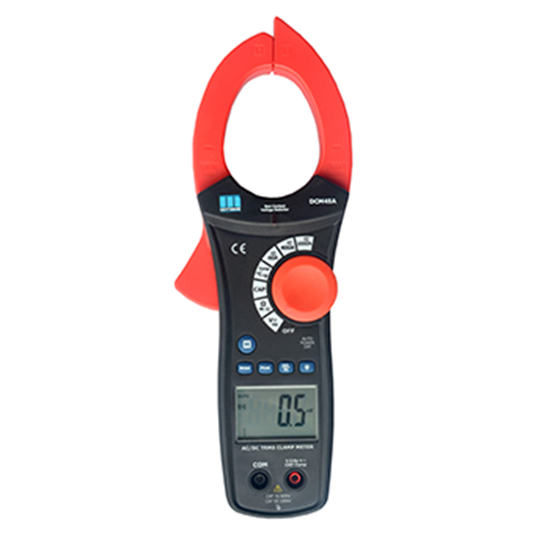

MOTWANE DCM45A 数字钳形表

  • 制造商: MOTWANE
    Model: DCM45A
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manufacturer: MOTWANE

Model: DCM45A

Origin: India

Warranty: 12 months


AC& DC Current:

40.00A; 0.01A; ± 2.8% + 10 d

400.0A; 0.1A; ± 2.8% + 8 d

1000A; 1A; ± 2.8% + 8d

DC Voltage:

400.0mV; 0.1mV; ± 0.8% + 2 d, 10MΩ

4.000V; 0.001V; ± 1.5% + 2 d, 10MΩ

40.00V; 0.01V; ±1.5% + 2 d, 10MΩ

400.0V; 0.1V; ± 1.5% + 2 d, 10MΩ

600V; 1V; ± 2.0% + 2 d, 10MΩ

AC Voltage:

400.0mV; 0.1mV; ± 1% + 10 d, 10MΩ

4.000V; 0.001V; ± 1.5% + 5 d, 10MΩ

40.00V; 0.01V; ±1.5% +5 d, 10MΩ

400.0V; 0.1V; ± 1.5% + 5 d, 10MΩ

600V; 1V; ± 2.0% + 8 d, 10MΩ

Resistance:

400.0Ω; 0.1Ω; ± 1.0% ± 4 d

4.000Ω; 1Ω; ± 1.5% ± 2 d

40.00Ω; 10Ω; ± 1.5% ± 2 d

400.0Ω; 100Ω; ± 1.5% ± 2d

4.000MΩ; 1KΩ; ±2.5% ± 5 d

40.00MΩ; 10KΩ; ± 3.5% ± 10 d

Temperature: -20˚C to 760˚C; ± 3% ± 5 ˚C

4 ˚F to1400˚F;  ± 3% ± 9 ˚FDisplay : LCD

Low Battery Indication : is displayed

Capacitance (Auto ranging) : 4nF to 40mF

Frequency : 4.0KHz (± (1.5% + 2d))

Frequency (Sensitivity) : 100V (<50Hz); 50V (50 to 400Hz); 5V(401 to 4000Hz)

Diode Test : Test current of 0.3mA typical; Opencircuit voltage 1.5V DC typical

Continuity Check : Threshold 40 ; Test current < 0.5mA

Peak : Captures peaks >1ms

Input Impedance : 10M (VDC and VAC)

Sampling Rate : 2 per second, nominal

Auto Power Off : After 30min approx.

Operating Temperature : 5 °C to 40° C

Operating Humidity : Max 80% upto 87 F (31 C) decreasing linearly to 50% at 104 F (40 C)

Battery : One “9V” Battery

Dimensions/Weight : 271 x 93 x 47mm / 500g approx.
