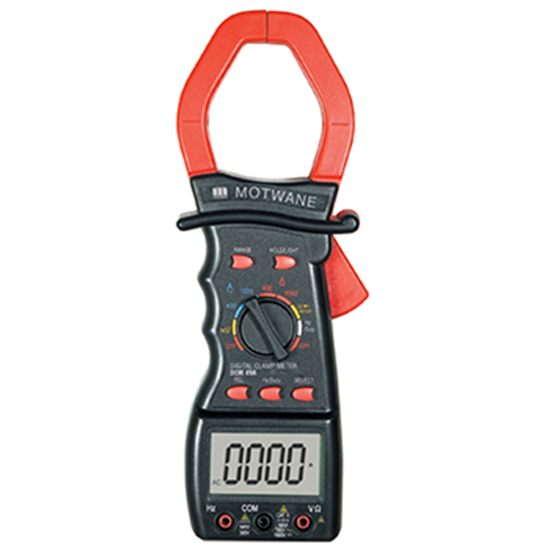

MOTWANE DCM49A Clamp Meter (AC 1000A)

Manufacturer: MOTWANE

Model:DCM49A

Origin: India

Warranty: 12 months


Dimensions: 260mm x 91mm x 44.5 mm( approx)

Weight: approx 500gms

Supplied Accessories: Pair of Leads, Instruction Manual, Battery Installed

Safety: In accordance qith IEC61010-2-32, double insulation DC 1000V and AC 700V, CAT-II and polution degree II

DC Voltage:

4V; 0.1V; ± 1.5% + 10d

40V; 1V; ± 1.5% + 10d

400V; 0.1V; ± 1.5% + 10d

1000V; 1V; ± 1.5% + 10d

Resistance:

400Ω; 10Ω; ± 1% ± 5d

4KΩ; 1KΩ;  ± 1% ± 5d

40KΩ; 10Ω;  ± 1% ± 5d

400KΩ; 1KΩ;  ± 1% ± 5d

4MΩ; 10Ω;  ± 1% ± 5d

40MΩ; 1KΩ;  ± 1% ± 5d

AC Voltage:

4V; 40Hz-400Hz; ± 1.5% + 10d

40V; 40Hz-400Hz; ± 1.5% + 10d

400V; 40Hz-400Hz; ± 1.5% + 10d

700V; 40Hz-400Hz; ± 1.5% + 10d

Frequency: 10KHz, 4V,  ± 0.5% ± 10d

Duty Cycle:0.1%-99.9%; 0.1%; 4V

Operating Temperature: O°C to 40°C , <80% RH (noncondensing)

Storage Temperature: -10°C to 60°C , <80% RH (noncondensing) battery removed

Temperature Coefficient: 0.1x accuracy/ deg C

Power Sourse is one 9V battery NEDA 1604 /6F22/ 006P

Auto power OFF:  30 mins of idle condition
