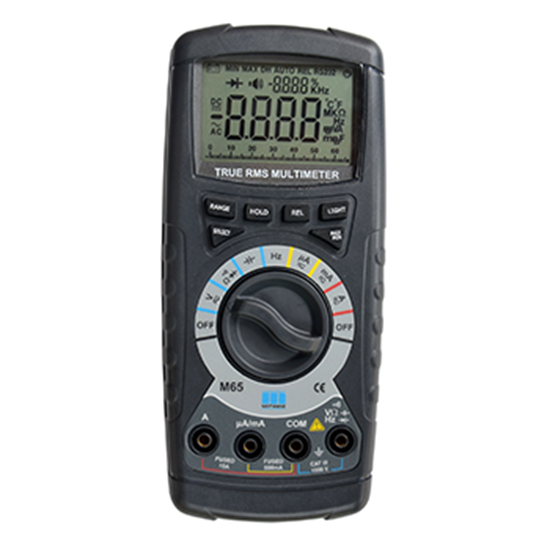

MOTWANE M65 数字万用表

Manufacturer: MOTWANE

Model: M65

Origin: India

Warranty: 12 months


DC Voltage: 6 V, 1 mV, ±(0.25% + 3)

60 V, 10 mV, ±(0.25% + 3)

600 V, 100 mV, ±(0.25% + 3)

1000 V, 1 V, ±(0.5% + 3)

DC Current:

600 µA/6000µA, 0.1µA/1µA, ±(1.2%+5)

60 mA/600mA, 10µA/100µA, ±(1.5%+5)

10A, 10mA, ±(1.5%+8)

AC Voltage (50Hz - 500Hz) Trms

6 V, 1 mV, ±(1% + 5)

60 V, 10 mV, ±(1% + 5)

600 V, 100 mV, ±(1% + 5)

1000 V, 1 V, ±(1.2% + 8)

AC Current range (50Hz-500Hz) Trms

600 µA/6000µA; 0.1µA/1µA; ±(1.5%+5); 0.8A/250V DC/AC

60 mA/600mA; 10µA/100µA; ±(1.8%+5) 0.8A/250V DC/AC

10A; 10mA, ±(2.0%+8) ; 20A/250V DC/AC

Duty cycle:1.00% - 98.9%; 0.1%; ±(0.5% + 30); 440V DC/AC rms

Diode: 6V; 1 mV; ≤ 3.0V DC approx., ≤ 2 mA approx.

Continuity: 600.0Ω; 0.1 Ω; -3.3V DC approx.

Operating Temperature : 0°C to 50°C

Storage Temperature : -20°C to 60°C

Relative Humidity : 80% RH @ 5°C to 31°C ,50% RH @ 31°C to 40°C Non-condensing

Detail

Datasheet
