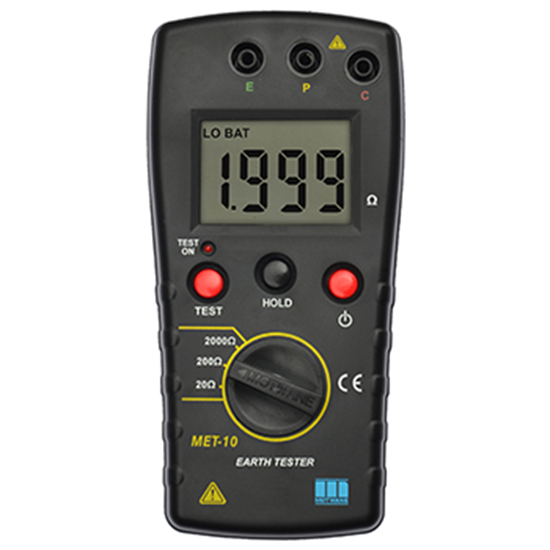

MOTWANE MET-10 接地电阻测试仪(20~2000Ω)

Manufacturer: MOTWANE

Model: MET-10

Origin: India

Warranty: 12 months


Earth Resistance Range: 20Ω, 200Ω, 2000Ω; 0.01 Ω @ 20Ω range, 0.1Ω @ 200Ω range, 1Ω @ 2000Ω range; 20Ω : ± (2 % of rdg + 5 digits); 200Ω : ± (2 % of rdg + 5 digits); 2000Ω : ± (2 % of rdg + 5 digits)

Test Frequency: 128Hz( ±0.5Hz)
Test curent Injection:20 Ω; 10mA AC rms ; +/- 10%

200 Ω ; 1mA AC rms ; +/- 10%

2000 Ω; 100uA AC rms; +/- 10%

Overload Protection : 230V AC (For 1min.)

Battery : 6 X 1.5V AA Alkaline cells (IEC LR6)

Low Battery Indication : “LO BAT” is displayed below 6.5 V approx

Display : 3 ½ Digit Custom Built LCD Display

Test On : Push TEST Button

Operating Temperature : 0˚C to 55˚C

Storage Temperature : -20˚C to 55˚C

Relative Humidity : Less than 95% RH, non condensing max at 40 C

Enclosure material : ABS

Dimensions : 175mm(H) X 85mm(W) X 41mm(D)

Gross Weight : 457gm (With Battery)


Standard Accessories:  Instruction Manual, Batteries 1.5 V AA Alkaline( IEC R6), carton, carrying case

Optional Accessories: Claw Hammer with Tubular handle, Spikes( 2 nos) , Test Leads( spool) lser, carrying case for earth test kit
