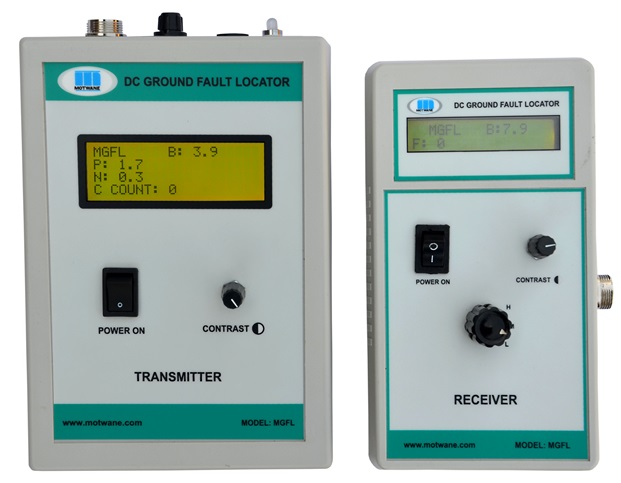

MOTWANE MGFL 接地故障定位仪

POWER :
TRANSMITTER :
RECHARGEABLE LI-ION
BATTERIES CHARGED BY 9V
CHARGER
RECEIVER :
RECHARGEABLE SITE
REPLACEABLE LI-ION
BATTERIES CHARGED BY 9V
CHARGER
SIGNAL VOLTAGE : ≤ 15 V RMS variable
SHORT CITCUIT CURRENT : < 2mA
SIGNAL FREQUENCY : ≤ 12Hz selectable
FAULT RESISTANCE : 1 MΩ, 400 kΩ, 100 kΩ,60 kΩ variants
SENSOR PROBE : HIGH SENSE BIG PROBE -55mm
HIGH SENSE SMALL PROBE -18 mm
CONTROL : Fully automatic
CAPACITIVE BALANCING : Automatic
TEMPERATURE :
STORAGE : 0 to 550
OPERATING : 0 to 550 C
DIMENSIONS in mm :
TRANSMITTER :120x170x55
RECEIVER : 95x175x40
WEIGHT :
TRANSMITTER : 0.5kg
RECEIVER :0.2 kg
