American: 3 - 12 lbf.in
S.I.: 33.9 - 135.6 cN.m
Metric: 3.5 - 13.8 kgf.cm

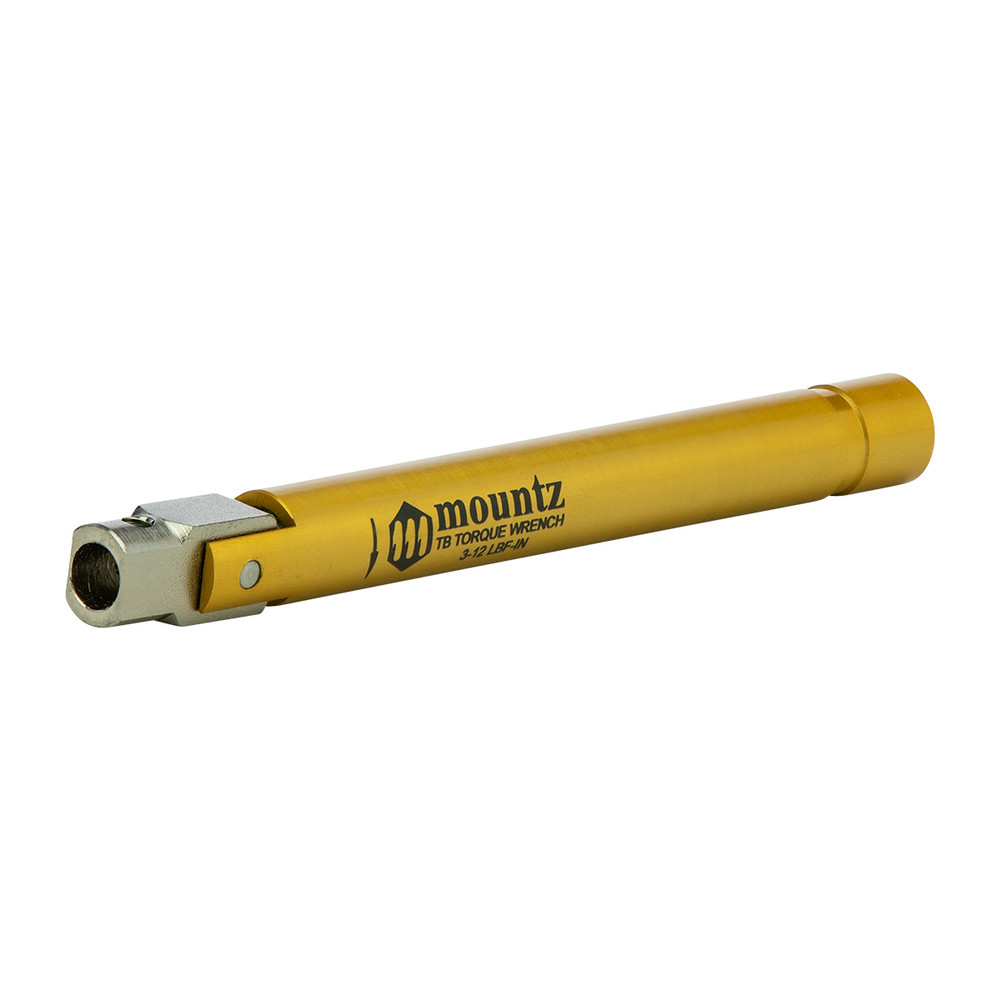

Tool Length: 5 1/2"
Handle Color: Gold
Torque ranges from 25 ozf.in to 50 lbf.in.
The break-over mechanism minimizes shock to assemblies.
Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer.
"Breaks-over" when preset torque is reached eliminating overtorquing.
Six different colored aluminum handles allow for color-coding of specific torque values in production areas.
Small and lightweight. Ideal for use in restricted spaces.
Interchangeable heads are manufactured with a common centerline so the torque setting remains the same when head sizes are changed.
