Input Driver type: 1/4 Male/Hex
Output Driver type: 1/4 Female/Hex
Torque range : 16 - 160 lbf.in/ 180 - 1807 cN.m
Rated Output: +/- 5VDC +/- 0.2% FS
Excitation Recommended: 11VDC to 26VDC (pole secure)
Nonlinearity: 0.2% FS
Usable Temperature Range 41 to 122 F
Mating Connector: Tuchel Series 581 (98-2030-09-12)
Safe Overload: 150% of Rated Output

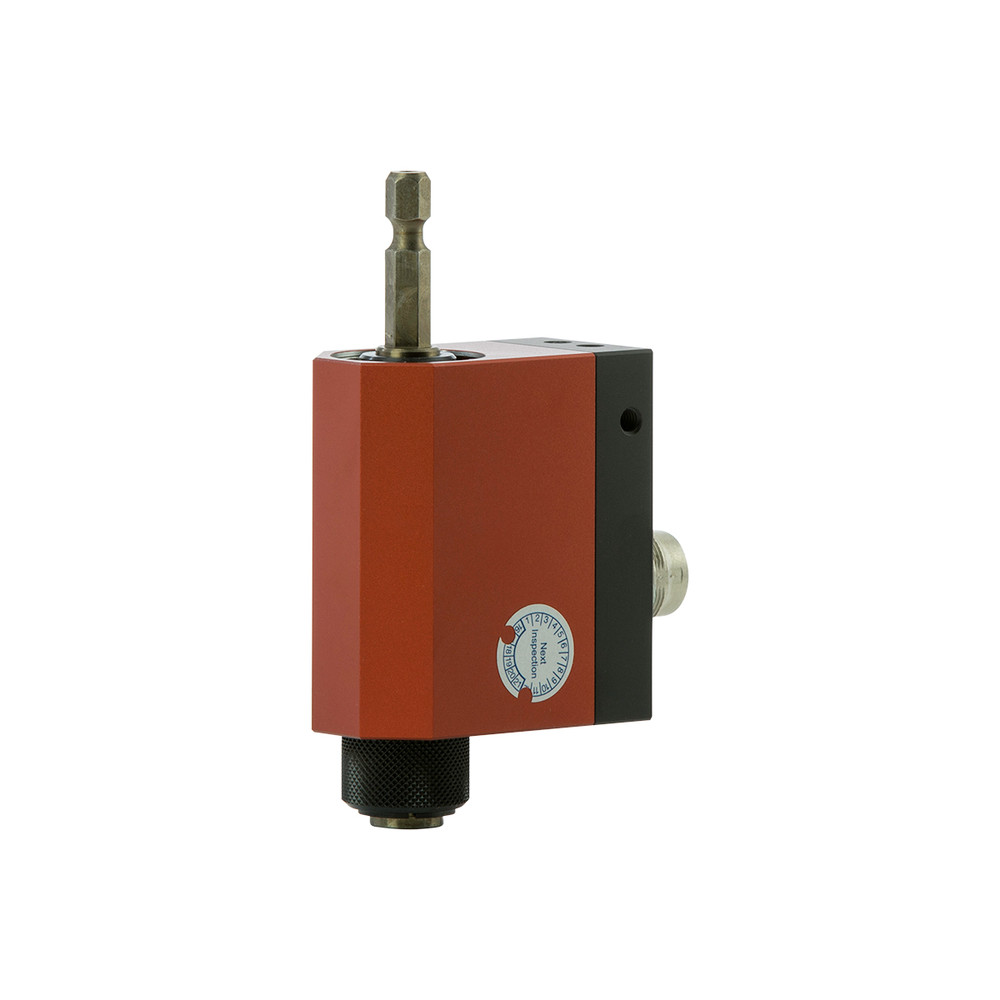

The Mountz brushless rotary torque sensors are an ideal torque-auditing tool for testing the actual torque being applied on the assembly application. Particularly valuable for measuring torque on pulse tools with strong vibrations. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to a fastener or bolt.
The brushless rotary torque sensor is a compact design & bi-directional.
The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a BLRTSX.
Non-Contact signal transfer and maintenance free.
For use with most power tools, high RPM tools, or rotational measurement applications.
Features ARCII technology, an instant auto-recognition system of the BLRTSX connected to the PTT or LTT.
Accuracy ± .2% of full scale*.
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (PTT or LTT).
