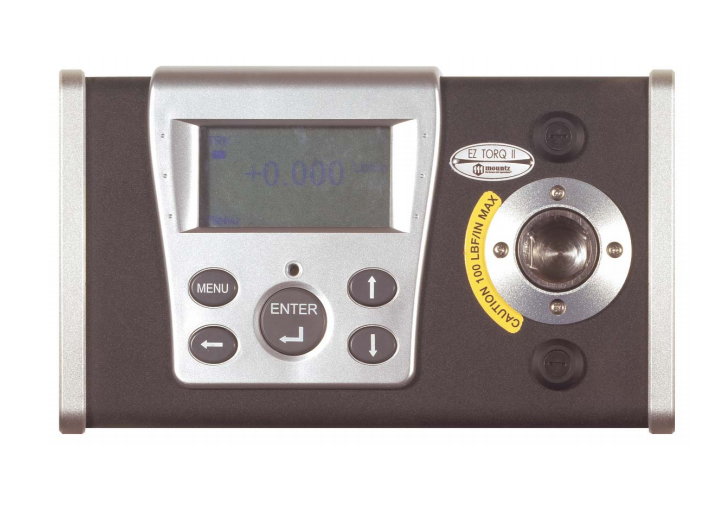

Mountz EZ-TorQ II 100i(070802)扭矩分析仪(113 -1130 cN.m)

Driver type: 17mm Female/Hex
Torque range : 10 - 100 lbf.in / 113 -1130 cN.m/ 11.5 - 115 kgf.cm
Weights: 4.5 lbs.

Detail

datasheet

manual

FEATURES:
EZ-TorQ digital torque tester features a built-in transducer. The easy-to-use torque analyzer is ideal for all small hand tools & non-impacting power tools. The small size and portability of the torque tester makes it ideal for checking torque tools on production floor daily or weekly to ensure the tools aren't falling out of calibration.
Accuracy ± 0.5% of reading from 20% to 100% of full scale
Accuracy ± 1% of reading from 10% to 20% of full scale
Torque Tester is recommended for hand screwdrivers, most wrenches and power tools*
Selection of three operation modes: (Track, Peak and First Peak)
Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)
Features built-in quick test operation
PC Windows based software program: Mountz EZ-TorQ II Interface Program - to conduct Quick Tool Tests, Data Logging and Sensor Calibration
“Flash" memory allows upgrades to be done by the user in the field & internet through the RS-232 port
Easy-to-use menu structure
Six-digit display
Ability to download readings to PC via RS-232 or via USB
Real time output via RS-232
High capacity Li-Ion batteries for long life
The unit will store a total of up to 150 data points
Real time graph of torque vs. time using associated PC Windows software.
Features Go / No Go LEDs that illuminate when high or low tolerance setting is achieved or out of tolerance
Three low-pass filter settings (130, 150 and 500 Hz)
Supplied with a free ISO 17025 Certification of Calibration
