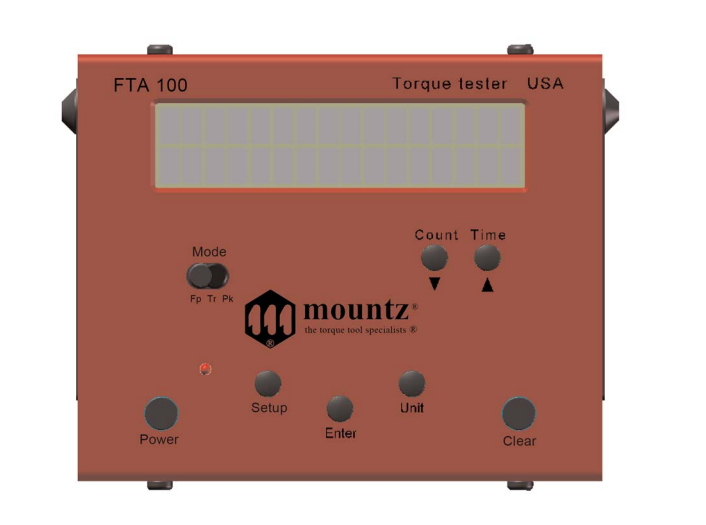

Mountz FTA-100(072990)扭力测试仪

Three operation modes: Track, Peak & First Peak
Seven units of torque measurements: ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm

Detail

datasheet

manual

FEATURES:
The new torque tester is designed for measuring torque. It also features the ability to count pulses, which is a key element for the setting the torque of a pulse tool as well as evaluating the maintenance schedule for a pulse tool.  A torque tool is a measuring tool that must be properly calibrated and maintained. The small size and portability of the torque tester makes it ideal for checking torque tools on production floor daily or weekly to ensure the tools aren't falling out of calibration. Torque measurement should occur in three facets of the assembly process.
System Accuracy ± 0.5% of reading from 10% to 100% of full scale
Recommended for all pulse tools, hand screwdrivers, torque wrenches and power tools
Selection of three operation modes: Track, Peak & First Peak
Monitors torque and pulse count. Unit displays both the peak torque & the number of pulses performed during a preset time frame to reach the final torque value
Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm)
USB interface to download readings in “real time”
Easy-to-use menu structure
Eight-digit display
Small and lightweight
Includes NimH batteries and universal charger (100-240 VAC).
Over Current Protection (OCP) protects unit from damage or malfunction
Menu prompting calibration process
Auto filter frequency selection based upon tool type being used in Peak mode
Provides "EZ-Plug & Play" with Mountz torque sensors that feature "ARCII" technology, an instant auto-recognition system of the torque sensor connected to the FTA-100
Includes Mountz Data Manager software for collecting & analyzing data
Supplied with a Free ISO 17025 Certification of Calibration
