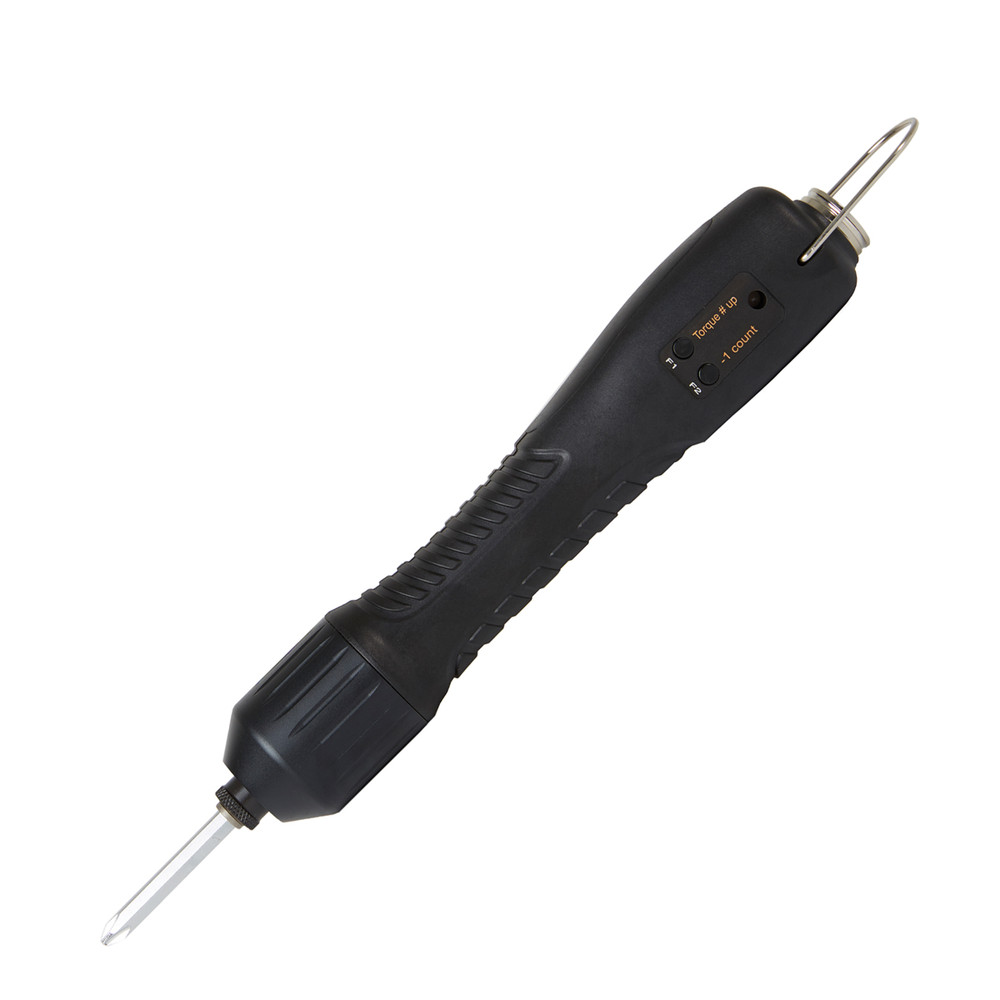

Mountz HD150P-A(145742)无刷电动螺丝刀(49.1 - 147 cN.m; 500 - 1800 r / m)

Driver type : Push-to-Start
Drive size: 1/4” F/Hex
Torque range:  4.4 - 13 /49.1 - 147 cN.m
Adjustable RPM : 500 -  1800 r/m
Size: Ø 1.25 inch x 9.66 inch
Weight: 15.5 oz / apprx 46.5 g

Remarks:  other accessories can be optional on the datasheet.





1. Brushless Electric Screwdrivers
Various models that range from 4.4 - 86.8
Electric Screwdrivers feature a high performance brushless motor design that provides durability and reduces the standard maintenance costs for electric screwdrivers.
ESD housing and bit tip control to 1 ohm, (cable not ESD).
Low inertial force provides smooth reaction-less operation with little G force to assembled parts.
Low noise, vibration and maintenance.

2. Controller
Programmable digital torque setting with memory for 8 preset torque settings.
Real-time monitoring and torque control of the tightening process.
Selectable speed up to 1,800 rpm.
Programming and monitoring with PC software.
Programmable multi-sequence operation.

3. Preset Parameter Settings
Three selectable units of measure:, N.m,
Selectable settings for Torque, Speed, Min & Max Angle, and Soft Start time.
Maximum angle control and verification
Minimum angle control and error reporting

4. I/O Interface & Settings
25P I/O interface to a PLC or 8 direct sensor ports.
Sensor ports for preset selection and screw counting.
Input via sensor ports for presets.
Input / Output for PLC.

5. Output Signal Types
Count complete
Torque up and Count complete
Alarm, screw missing

6. Built-in Screw Counter
Detection of fastening error and displays error condition.
Visual assembly fastener count (count up or down), including total count.
Real time monitoring by PC program.
Detects - cross threading, omissions, unfinished rundowns and cycle complete.
Programmable screw counter settings.
0 to 99 screws

7. LCD Display
Preset and Speed.
Preset and Torque.
Converted Torque Idle & Target Torque (Running)
Count setting and remaining screw count.
Count setting and remaining screw count (Idle)
+ Preset and Torque (Running).
Count setting and remaining screw count +
Preset and Torque (Alternating).

8. Screw Counting Selections
Start (Continuous on)
Start Pulse with time limit
Start Pulse and Finish pulse

9. Motor Run Time Limits
Motor run time limits, forward and reverse.
Motor stall time limit.
Sleep time.
Motor acceleration for soft start.
