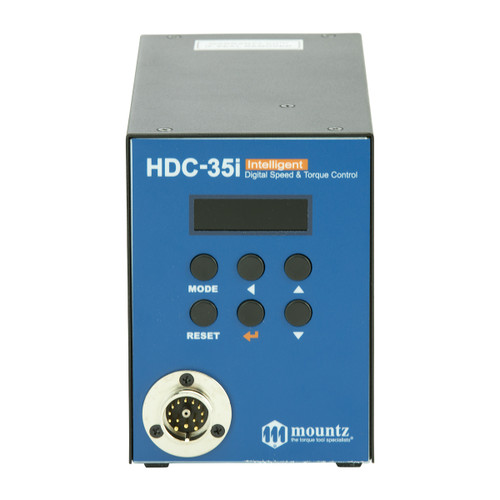

Mountz HDC35i(145820)控制器(适用于:PHD35N,PHD50N,PHD100N和HD100N)

Input (Electric):  AC120VC ~ 220V, 50–60Hz
Output (Electric):  DC35V, 4A
Fuse: AC250V 15A
Dimension (WxLxH): 4 1/8" x 9" x 5 2/3"
Weight: 5.7 lbs
Preset selection capability: Front panel or 25P I/O
For : PHD35N, PHD50N, PHD100N & HD100N

Detail

datasheet

manual

Input (Air Pressure):
Min 5 Bar (72.5 PSI) / Max 6.5 Bar (92.2 PSI)
Angle Control: 0.1 - 10 turns
Preset Parameters: Torque, Speed, Soft Start & Angle in 8 preset numbers
Auto detection of the connected driver: Auto detection of the offset value from the EEProm on the driver
Error display: Error display by code no. in system, communication & pattern error group
Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time.
PC based program for parameter settings, monitoring and real time output
