Input Driver type: 1/4" Male Sq. Dr.
Torque range : 20 - 120 cN.m
Graduation Torque range: 1 cN.m
Adjustable ring color: black

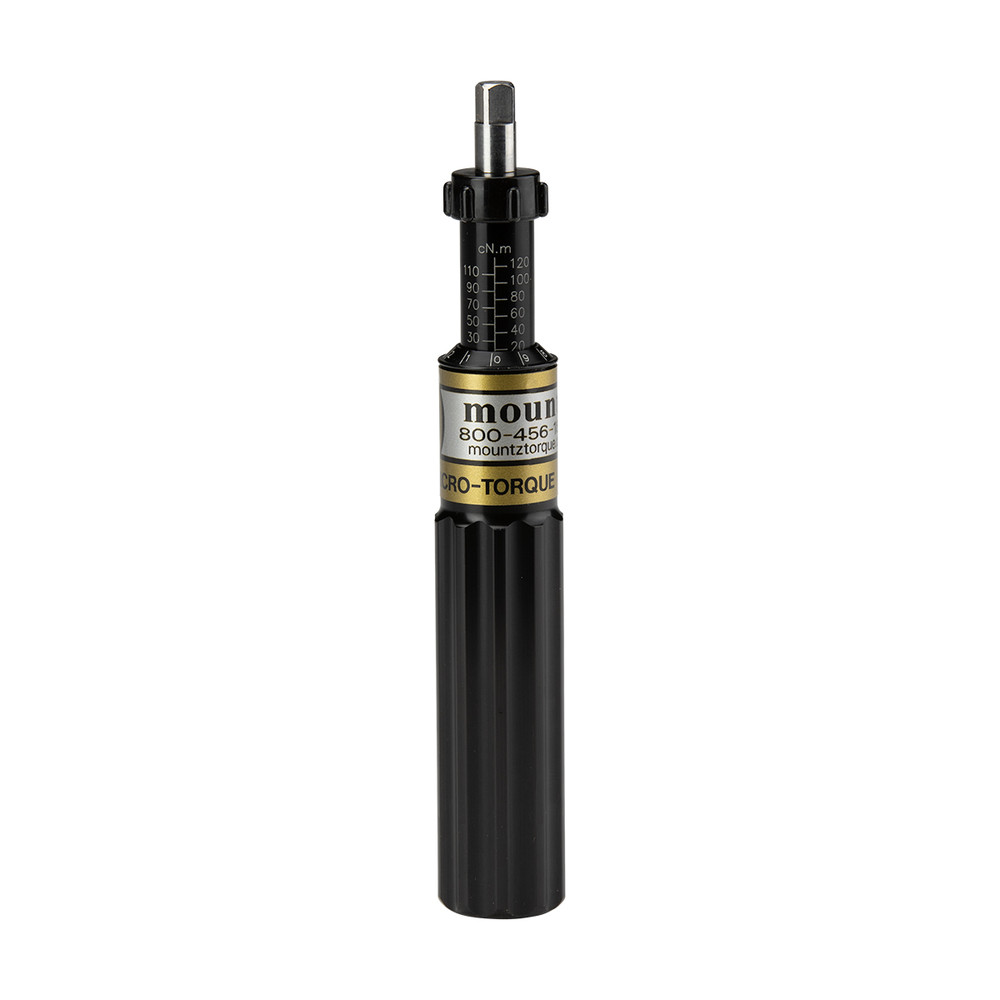

The screwdriver is an externally adjustable torque tool that offers different setting options for applications that require more than one torque value. The adjustable torque screwdriver features an external adjustment torque scale, which allows an operator to quickly and accurately adjust the torque setting on the tool as needed for different applications. Built with a cam-over design, the accurate screwdriver prevents a fastener or bolt from being under and over tightened. As quality control tool, the screwdriver allows any user to deliver the correct torque with confidence regardless of task and operator skill level.
The preferred and certified ranges of these tools is in accordance with the requirements if ISO 6789:2003 (+/- 6% of setting).
Various models that range from 20 ozf.in to 80 lbf.in.
Externally adjustable tool offers different setting options for applications that require more than one torque value.
The “positive” locking system prevents incidental torque adjustment.
The screwdriver “slips free” once the set torque has been reached making over-tightening impossible.
Adjustment ring disengages to prevent incidental torque adjustment.
Precision radial ball clutch and cam allows for automatic resetting.
Micrometer adjustment allows for accurate tool setting.
Color coded anodized aluminum handles allow for differentiation of models.
