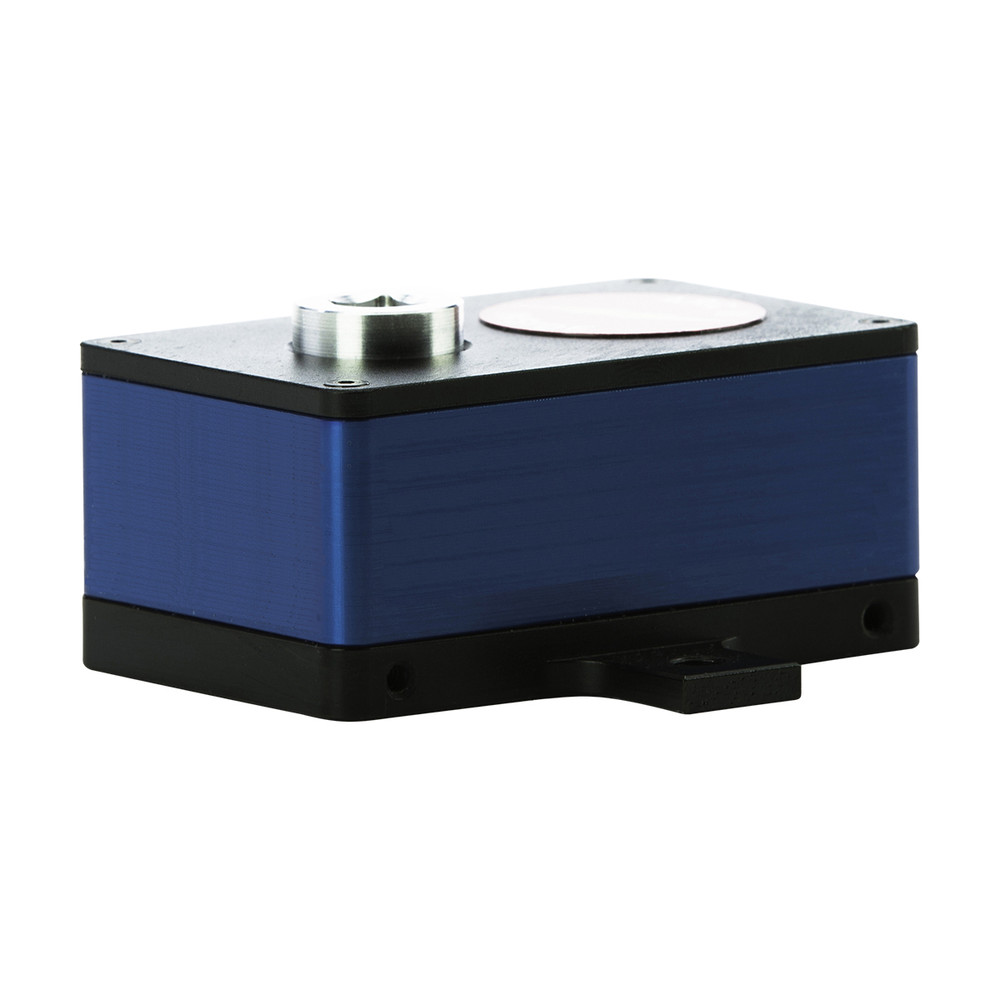

Mountz MTX80z(079010)MTX低扭矩反应传感器(5.7 - 56.5 cN.m; 1/4 F / Sq Dr.)

Input Driver type: 1/4 F/Sq Dr.
Torque range : 8 - 80 5.7 - 56.5 cN.m
Rated Output: 2mv/v Nominal
Safe Overload: 125% of Rated Output
Bridge Resistance: 350 Ohms Nominal
Nonlinearity: +/ 0.1% of Rated Output




The MTX is a low torque sensor designed for calibrating and testing small hand screwdrivers, torque wrenches and power tools. With its low profile design, the calibration instrument can be used for automated applications, by mounting it to a palletized system. This saves time as there is need to remove the driver from the robot or off the automated system for calibration. These versatile torque sensors are used in conjunction with a torque tester.
For calibrating low torque hand screwdrivers, wrenches and power tools.
The low profile design makes it ideal for calibrating robotic drivers on the assembly line.
Various models that range from 1 - 160
Features “ARCII” technology, an instant auto-recognition system of the MTX connected to the FTA-100, PTT or LTT.
1/4” female square drive.
Accuracy ± .25% of full scale*.
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (FTA-100, PTT or LTT).
