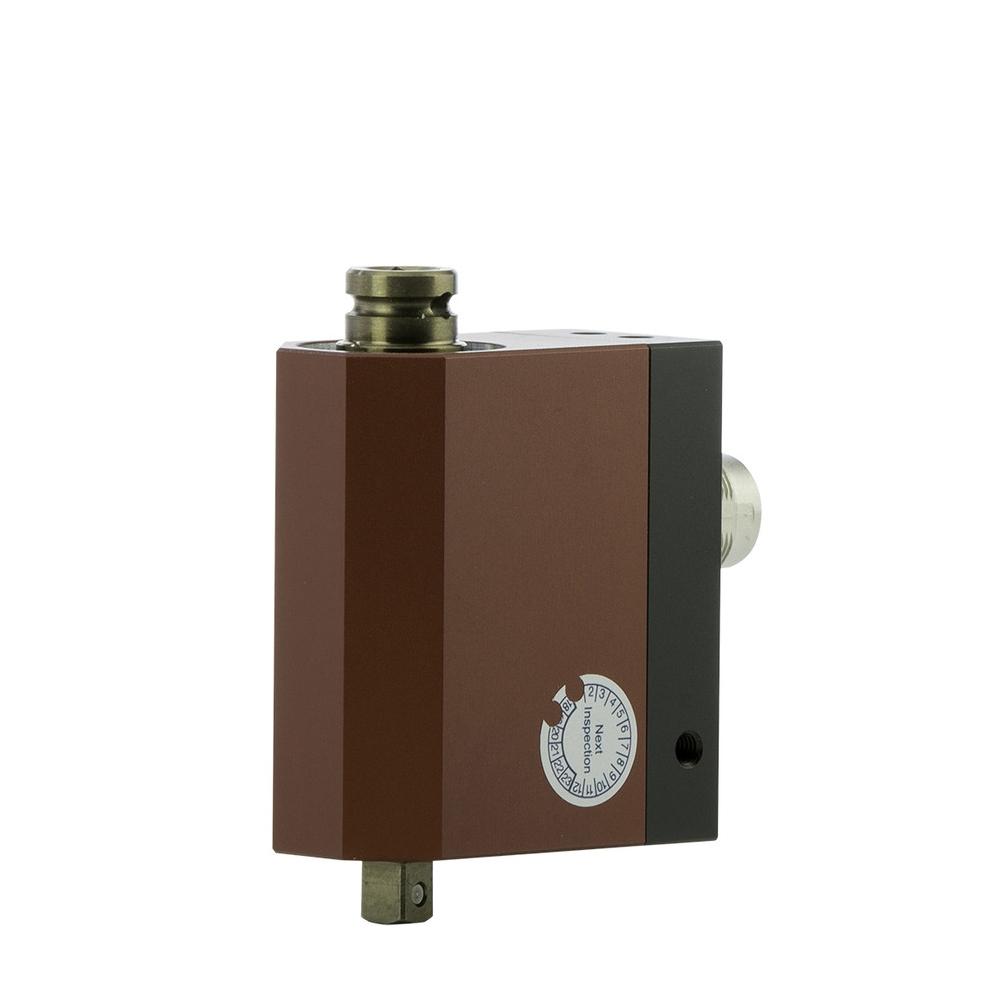

Mountz RTSX100i-A Rotary Torque & Angle Sensor (10 -100 lbf.in)

Input driver type: 1/4 Female/Square

Output driver type: 1/4 Male/Square

Torque ranges: 10 -100 lbf.in / 113 - 1130 cN.m

Output at rated capacity:  </= 6 Nm[53 lbf.in] rated torque 1 mV/V > 6 Nm[53 lbf.in] rated torque 2 mV/V

Interchangeability: Matched for mv/v and Shunt Calibration + 0.3% FS

Nonlinearity: +0.2% FS

Excitation recommended: 12V DC or AC RMS

Bridge resistance: 350 Ohms

Usable temperature range: 41 - 122°F

Mating connector: Bendix PT06A-12

Safe overload: 125% of rated output

Detail

Features:

Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.

Angle output: 2-channel quadrature, 360 pulses per rotation.

Bi-directional.

For use with most power tools and rotational measurement applications.

Features ARC II technology, an instant auto-recognition system of the RTSX-A connected to the PTT and LTT

Accuracy ± .25% of full scale
