Input Driver type: 1/4 Female/Square
Output Driver type: 1/4 Male/Square
Torque range : 10 - 100 lbf.in / 113 - 1130 cN.m
Output at Rated Capacity: </= 6 Nm [53 lbf.in] rated torque 1 mV/V > 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability: Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity: +0.2% FS
Excitation Recommended: 10V DC or AC RMS
Bridge Resistance: 350 ohms
Usable Temperature Range: 41-122 degrees F
Mating Connector: Bendix PTO6A-10-65(SR)
Safe Overload: 125% of rated ouput

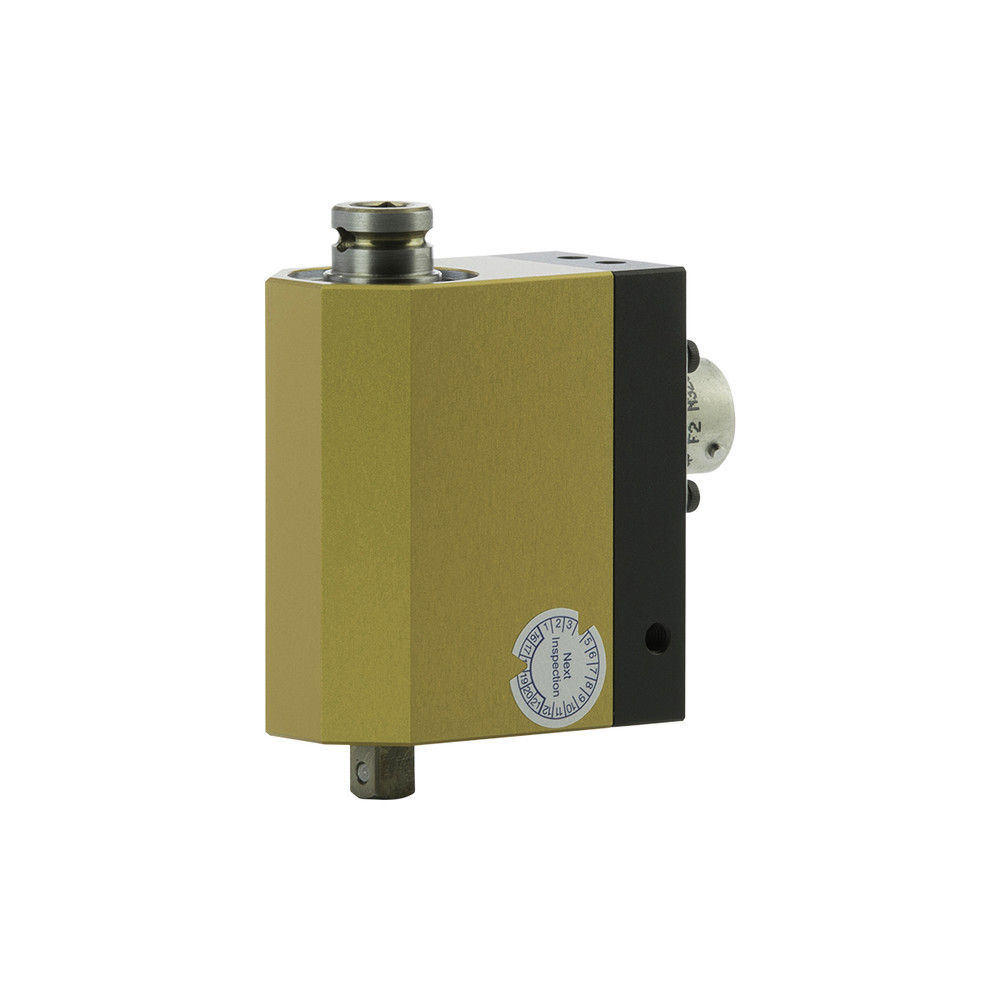

The Rotary Torque Sensor is the ideal torque-auditing tool for testing the actual torque being applied on the assembly application. By connecting a rotary torque sensor between an electric or pneumatic tool and assembly application, you can monitor the torque being applied from the tool to fastener or bolt.
Use torque sensor with most hand tools, power tools or rotational measurement applications.
Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
Features “ARC II” technology, an instant auto-recognition system of the RTSX connected to the FTA-100, PTT or LTT.
Accuracy ± .25% of full scale*.
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (FTA-100, PTT or LTT).
