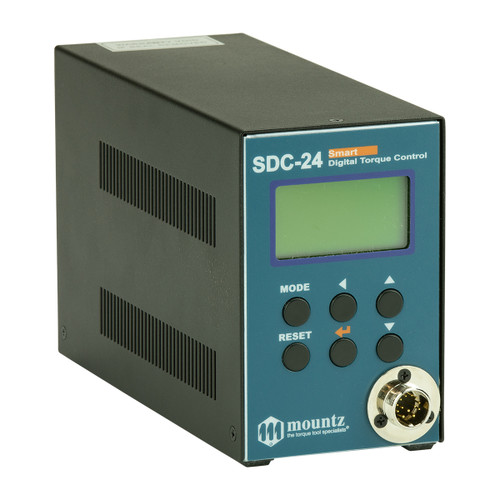

Mountz SDC-24(145917)控制器(适用机型:SD070 - SD1500)

Input (Electric): AC120VC, 60Hz
Output (Electric): DC24V, 5A
Dimension (WxLxH): 3 1/3" x 8 1/4" x 5 1/8"
Weight: 3.5 lbs
For models: SD070 - SD1500




Preset selection capability: Front panel or 25P I/O
Angle Control: 0.1 - 10 turns
Preset Parameters: Torque, Speed, Soft Start & Angle in 8 preset numbers
Auto detection of the connected driver: Auto detection of the offset value from the EEProm on the driver
Error display: Error display by code no. in system, communication & pattern error group
Fastening Quality Control: OK/NG monitoring of screw fastening by preset pattern of angle and/or time.
PC based program for parameter settings, monitoring and real time output.
