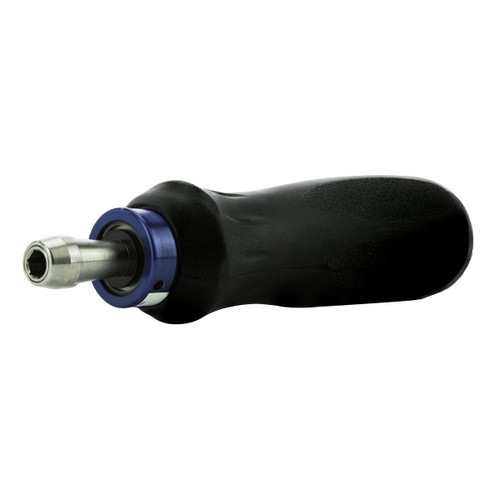

Mountz SDX50i(078001)SDX扭矩螺丝刀传感器(56.5 - 565 cN.m; 1/4“内螺纹/六角)

Driver type: 1/4" Female/Hex
Torque range : 5 - 50 lbf.in  / 56.5 - 565 cN.m
Size ( LxW in): 6 x 1.5 in
Weights: 0.5 lbs/ 0.2 kg

Details

datasheet

manual

FEATURES:
SDX torque screwdriver sensor is an instrument designed for auditing or tightening fasteners to a specified torque when mated with a torque analyzer.
Torque Sensors for auditing or tightening fasteners to a specified torque when mated with a torque analyzer.
Ergonomic rubber grip and stainless steel Female/Hex bit holder.
Features “ARC II” technology, an instant auto-recognition system of the SDX connected to the FTA-100, LTT or PTT.
Connect to a torque analyzer to monitor, test or audit a fastener.
Safe Overload: 125% of Rated Output.
Length x Width ( 6” x  1 1/2”)
Weight 0.5 lbs
Accuracy ± .25% of full scale*.
Note: * This is the stand alone accuracy for the torque sensor. When the torque sensor is coupled with a Mountz torque analyzer, there is a system accuracy. Review the system accuracy listed with each torque analyzer (FTA-100, PTT or LTT).
