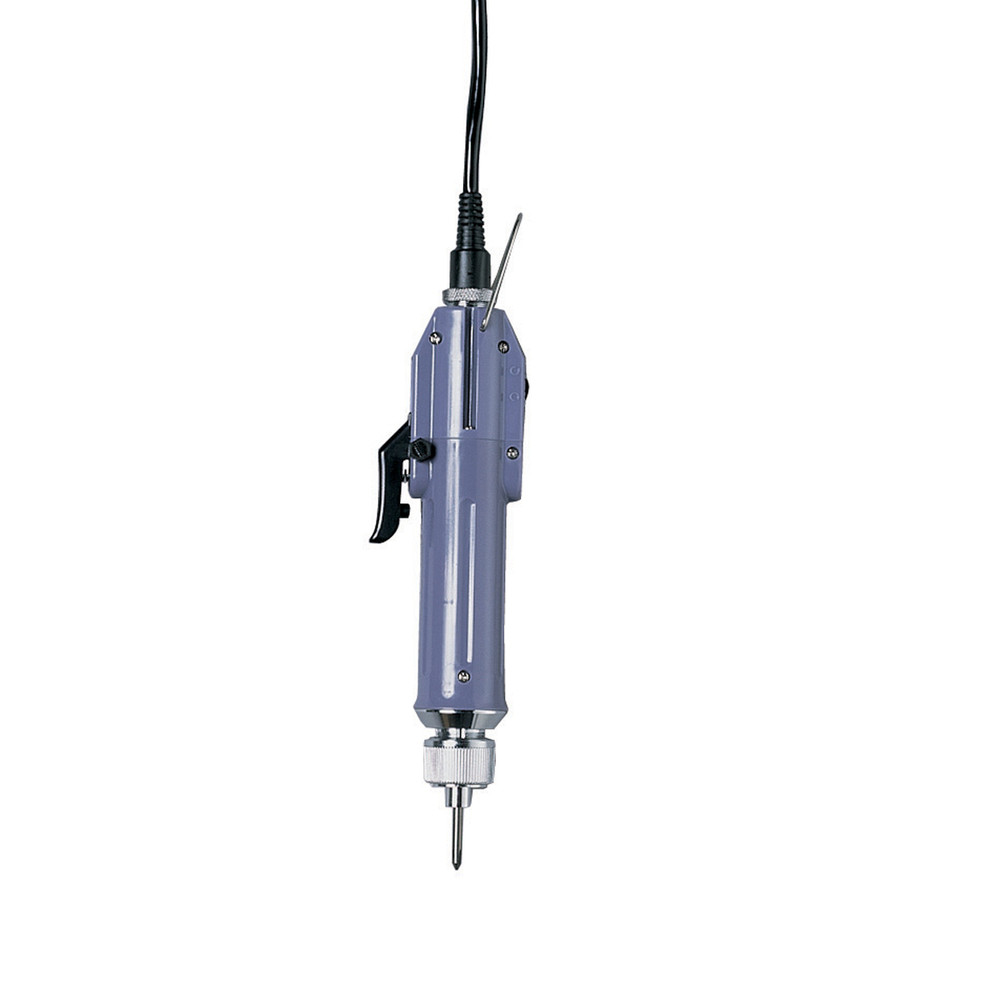

Driver type : Lever Start
Drive size: 4mm HIOS
Torque range: 0.3 - 1.7 lbf.in / 3 - 20 N.m
Adjustable RPM : 670 - 1000 r/m
Size: Ø 1.25 inch x 7.25 inch
Weight: 12.5 oz / apprx 37.5 g
Various models that range from 0.17 - 17.4 lbf.in.
Precision "Soft-Stop" clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc.
Ergonomically designed clutch and body case reduces impact and vibration transmitted in the screw fastening process.
Low voltage requirement offers superior life and safe operation.
Can be connected with the Scout Screw Counter.
Requires a Transformer (power supply).
External torque adjustment scale.
One way clutch - direct drive in the counter-clockwise direction for easy removal of tightened fasteners.
Available in Clean Room, Vacuum,ESD, Push-to-Start and Lever models.
Note! CR are Clean Room models. All Vacuum and Clean Room models are lever start. Requires a Transformer (power supply).
