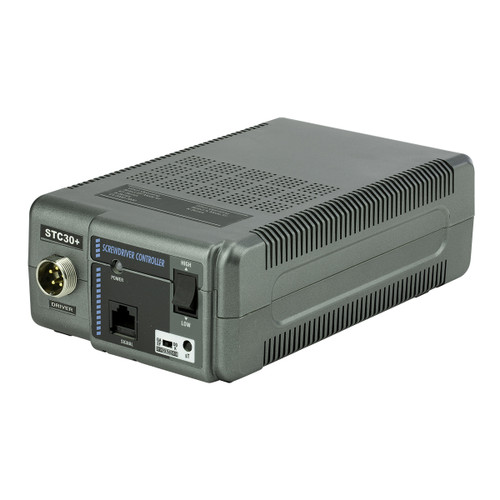

Mountz STC30(145683)变压器全能版(适用型号:A系列,CL系列,EF系列和K系列)

Rated Output: 2.5A
Max. Output: 5A
Output VDC: 20/30V or 30/38V
Input VAC: 230V
Size inches (W x D x H): 4 3/8” x 7 1/2” x 2 3/8”
Weight: 1.8 lbs/ apprx 816g
For models :  A-Series, CL-Series, EF-Series, & K-Series

Details

datasheet

manual

Selectable output voltage:
 - 20/30V for HIOS & EF Series drivers
 - 30/38V for K Series drivers
Over Heat Protection (OHP) and Over Current Protection (OCP) protect driver from damage or malfunction.
Temperature Detection powers down the unit and resets automatically when unit restores to acceptable levels.
Switchable 110V & 230V input voltage. Unit will reset itself if motor/current overload is too high.
Start & Stop Signal Output (for PLC).
Selectable Soft Start (from 0.2-0.6 seconds).
Selectable Double Hit Mode for soft joint applications.
Screwdriver Lock Signal Input (for PLC).
Unit can be connected to the Scout (Screw Counter).
