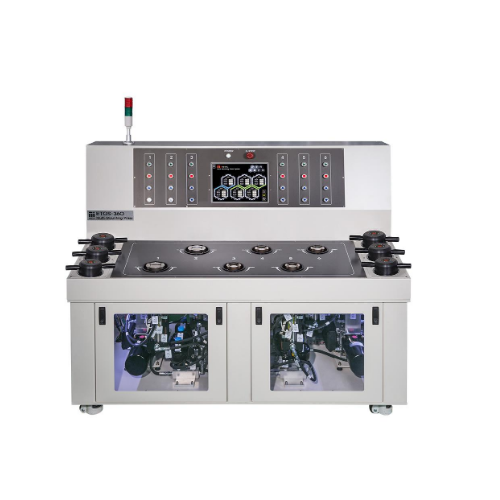

MTDI ETOS-300 安装压力机 (25 ~ 50mm, Multi Molds)

Usage: Automatic Multi-channel Hot Mounting Press

Dimension (WxDxH) (mm): 1410㎜x800㎜x1,550㎜

Power: AC220V, Single phase, 50~60Hz,  7.5~11kW (Multi channel available)

Mold Size: 25 ~ 50mm Dia. , User Selection(40, 50 Option)

Input Type: Auto Hydraulic, Pump(Max 3,000psi/210Bar)

Cooling: Auto Cooling(Water) with Solenoid valve / Fan Cooling(Air)

Temperature: Max 220℃ (Limit 210℃)

Safety: E-stop button, Limit of Temperature and Pressure

Advantage:

Integrated design of Cylinder and Heat for quick mounting

15” LCD Touch Screen for easy control and check status conveniently

Buttons: Power, E-stop, Start, Stop, Up, Down

Prevent fall down of Mold Cap for safety use

Emergency Stop button block the power immediately

Set Limit available of Temperature and Pressure

Entire start, Separate channel control available

Single Power Pack with 2 Molds for effect use

Cooling circulation system keep stable temperature of mounting press surface

Voice Guidance

Specimen Cradle (Option) for specimen storage

Prevent Noise and increase Hydraulic Cylinder and Hydraulic Pump by Accumulator

Controls: Power, Start, Stop, Cylinder control
