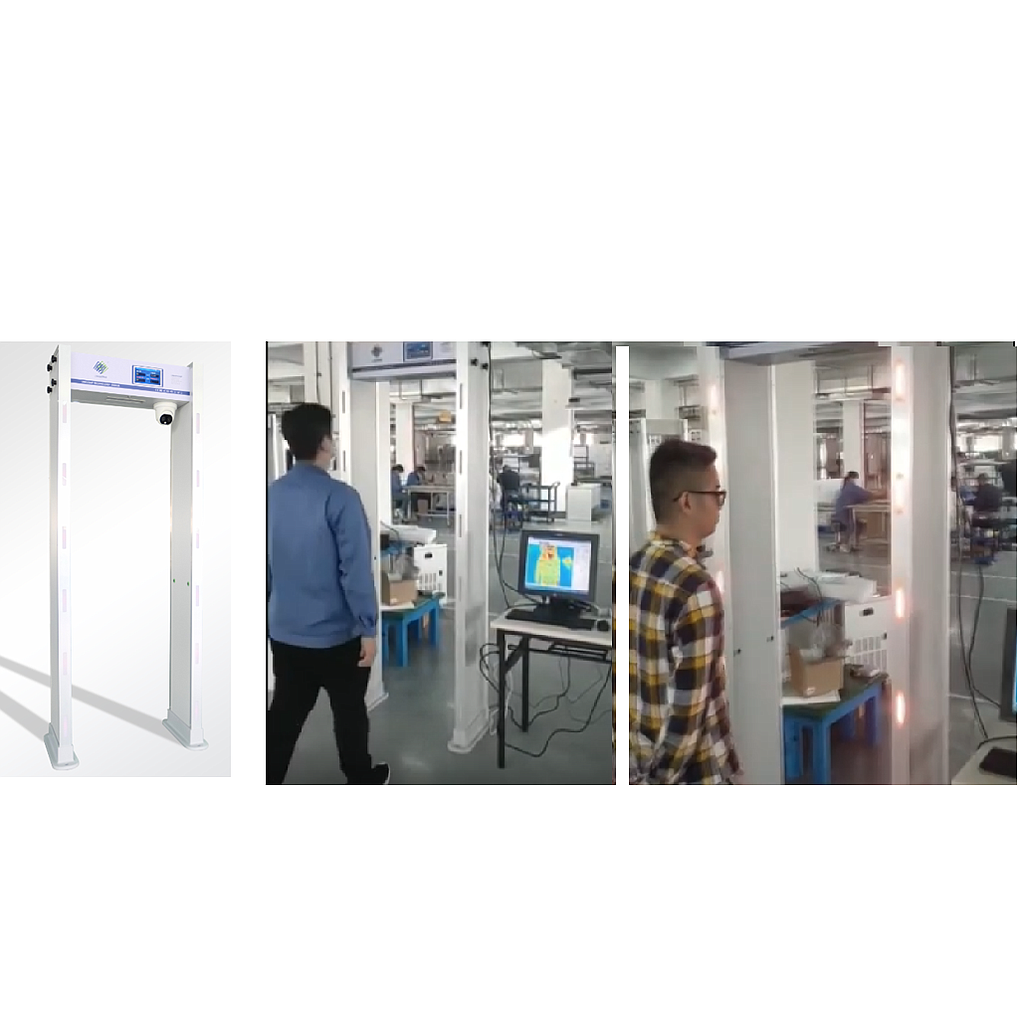

MTSC UNX200 Door Frame Infrared Imaging Camera Temperature Detector


Applications

     Airport, Customs, Train Stations, Shopping Mall, School, Hospital, Hotel, Law Enforcement

     Church, Theatre, Museum, Stadium, Factory, Exhibition Center, Government Office, etc.

Product Introduction

UNX200 is an automatic Infrared Imaging Camera temperature detector and alarming system adopts military-grade infrared technology, which can screen people who pass through the walk-through door frame for non-inductive infrared body temperature. The alarming system will be automatically triggered once a higher body temperature is detected than the pre-setting threshold. It can screen people with fever in large scale, improve the prevention and control efficiency of the epidemic, and greatly reduce the risk of infection



Technical Specifications

l High precise body temperature detection and auto alarming, response time < 0.5s

l Temperature accuracy: ±0.3, two infrared sensors equips with different height

l Safety temperature threshold with self-calibration( standard: 37.3 °C, adjustable)

l Pass through (in & out ) counting, auto alarming with sound and  LED lights

l Light weight and strong anti-interference, stable performance

l Automatic self-calibration, pre-setting the alarm threshold, decrease manual operation and improve efficiency

l Plug and play with modular design parts, easy to install and troubleshoot

l Low rate of false alarm with cutting-edge digital signal processing technology

l One button operation to restore factory default settings

l International A-level measurement capability, stable working

l Extensibility of the integration with Metal Detector, turnstile barrier gate, finger-print access control, CCTV, and ID reader ( Optional)

l Networking management for multi-terminals with real time monitoring and data retrieving  (Optional)


includes:
- Microcomputer
- màn hình LCD 22 inch
- Voice broadcast module
- power amplifier module
- Loud-speak
- RS232 cable, video signal, power cable
- Software

LCD Display

7”Colors TFT LCD

Temperature accuracy

±0.3,

Power consumption

15W

Temp. Detecting Range

25 ~ 43

External Power

AC 110~240V, 50/60HZ

Net Weight

45KG

Gross Weight

52KG

Working Environment

No direct sunlight, No wind

Operating humidity

99%non-condensing

Inner Size

1983H)× 702 W)× 334 L)(mm

Outline size

2199H)× 818 W)× 334 L)(mm

Package Size(2 cartons)

820*480*260mm       (Control Unit)

2340*830*260mm     (Frame Panel)

Certifications

CE, FDA, ISO9001, ISO14001, OSHAS18001, Chinese GB
