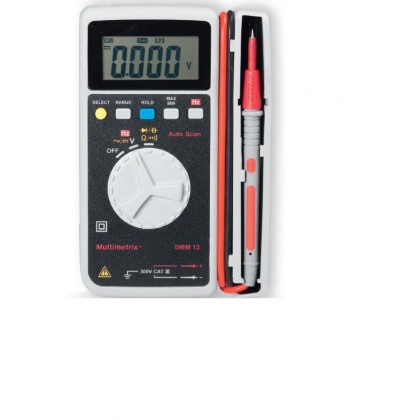

Multimetrix DMM13 Digital multimeter

Display 6,600 counts

Type of measurement: Average

VDC: 600 mV / 6 V / 60 V / 600 V; 1.0% of reading + 3 cts; 0.1 mV

VAC: 600 mV / 6 V / 60 V / 600 V; 1.5% of reading + 5 cts; 0.1 mV

Frequency Ranges: 6 kHz / 60 kHz

Resistance: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ;  1.0% of reading + 5 cts; 0.1 Ω

Continuity (with buzzer): Yes

Diode test: Yes

Capacitance: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF

Range selection: Automatic / Manual

Other functions: Data HOLD, deactivatable automatic power-off, MAX/MIN

Safety: 300V CAT III according to IEC 61010-1, 61010-2-033

Dimensions / weight: 130 x 81 x 24 mm / 335 g (without batteries)

State at delivery:

• 1 DMM 13 with built-in test-probe leads

• 2 x 1.5V AAA batteries

• Operating manual (FR/GB/D/I/E)
