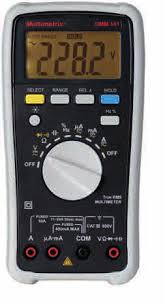

Multimetrix DMM141 数字万用表(4000CTS RMS CAT III 600V)

  • 制造商: Multimetrix
    Model: DMM141
    来源: Taiwan
    保障: 12 month
    • 报价要求 报价要求
  • 2,727,001 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Multimetrix

Model: DMM141

Order No.: P06231422Z

Origin: Taiwan

Warranty: 12 months


Display 6,600 counts

Type of measurement: RMS

IDC: 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A; 1 %R + 3 cts; 0.1 µA

IAC: 400 µA / 4000 µA / 40 mA / 400 mA / 4 A / 10 A; 1 %R + 5 cts;  0.1 µA

VDC: 400 mV / 4 V / 40 V / 400 V / 600 V; 0.5 %R + 3 cts

; 0.1 mV

VAC: 400 mV / 4 V / 40 V / 400 V / 600 V; 1 %R + 5 cts; 0.1 mV

Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ; 0.5 %R + 2 cts; 0.1 Ω

Continuity (with buzzer): Yes

Diode test: Yes

Frequency (on V): 5 Hz / 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 5 MHz

Capacitance: 50 nF / 500 nF / 5 µF / 50 µF / 100 µF

Range selection: Automatic / Manual

Other features: Backlighting, Data Hold, deactivatable automatic power-off, Relative mode

Safety: 600 V CAT III according to IEC 61010-1, 61010-2-033

Dimensions / Weight: 181 x 92 x 57 mm / 335 g (without batteries)

State at delivery:

• 1 set of red/black cables with test probes

• 1 shockproof protective sheath

• 2 x 1.5 V AA batteries

详细

Datasheet
