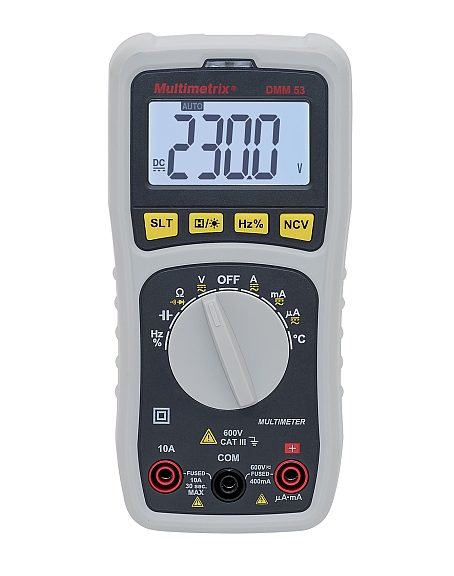

Multimetrix DMM53 数字万用表 (4000 CTS CAT II 600V)

Display 6,600 counts

Type of measurement: Average

IDC: 400 μA / 4,000 μA / 40 mA / 400 mA / 10 A;  1 % of reading + 5 cts; 0.1 μA

IAC: 400 μA / 4,000 μA / 40 mA / 400 mA / 10 A; 1 % of reading + 5 cts;  0.1 μA

VDC: 400 mV / 4 V / 40 V / 400 V / 600 V; 0.5 % of reading + 3 cts;  0.1 mV

VAC: 4 V / 40 V / 400 V / 600 V (40 Hz - 400 Hz);  0.8 % of reading + 5 cts; 1 mV

Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ; 0.8 % of reading + 5 cts; 0.1 Ω

Continuity (with buzzer): Yes

Diode test: Yes

Frequency (on V): 10 Hz / 100 Hz / 1 kHz / 10 kHz / 100 kHz / 1 MHz / 10 MHz

Duty cycle: 0.1 .. 99.9 %

Capacitance: 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF

Temperature: -20 °C … +1,000 °C (K thermocouple)

Range selection: Automatic

Other specifications: Torch function, Data HOLD, NCV: no-contact detection of electric fields (voltage), deactivatable automatic power-off

Safety: 600 V CAT III as per IEC 61010-1, IEC 61010-2-033

Dimensions / weight: 150 x 73 x 48 mm / 230 g

Accessories supplied:

One set of red/black cables with test probes,2 x 1.5 V AAA / LR03 batteries.
