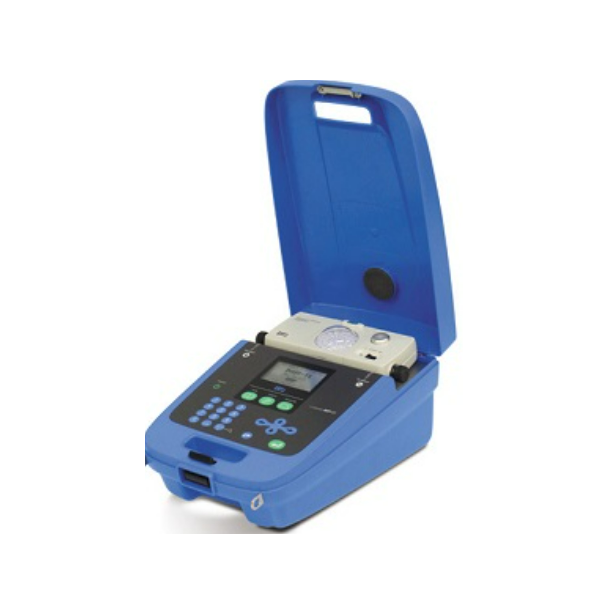

MULTI MP-11 I-V检查器 (10W~18kW, 100mA~30A)

Measuring Range: 10W~18kW, 100mA~30A

Voltage Range: 10~1000V

Measuring Data Nos.: 400 points (1 sample)

Measuring Functions: Max. output (Pm), Short circuit current (Isc), Open circuit voltage (Voc), Max. output operating Voltage (Vpm), Max. output operating current (Ipm), Generation efficiency (η), Fill factor (FF), Solar radiation intensity, Outside air/back surface temp, Conversion by I-V curve standard condition

Power Supply: NiMH battery x 8, AC adapter

Dimension: W230×H160×D300mm

Weight: 3.5kg

Accessory: Sensor unit, PV probe, Thermocouple temp probe, USB cable, Battery box, NiMH batteries, Battery charger, FG cable, Modular cable
