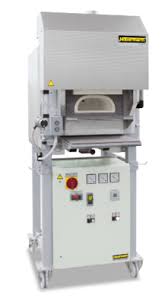

Nabertherm N 8/13 CUP 分析分析炉(1300°C,8升)

Temperature Max: 1300°C
Control System: B400
Inner dimensions (mm): 260x340x95
Outer dimensions (mm): 900x1335x2100
Volume (L):8
Connected load (kW): 22
Electrical connection: 3 phase
Weight (kg): 510



These furnaces are especially used for the assay of precious metals and ashing processes where the insulation and
heating must be protected from emerging gasses and vapours. The furnace chamber forms a ceramic muffle which
can easily be replaced. The assay furnace is equipped with an integrated exhaust hood above the furnace door for
connection to and exhaust sytem.
„Muffle heated from four sides (three sides for model N 25/13 CUP)
„Heating elements and insulation protected by muffle
„Simple replacement of muffle
„Warm furnace can be opened
„Tool holder on furnace
„Stainless steel exhaust chimney above the door opening for connection of an exhaust system
„Dual shell housing with fan cooling to reduce exterior temperatures
„Defined application within the constraints of the operating instructions
„Controls description see page 60
