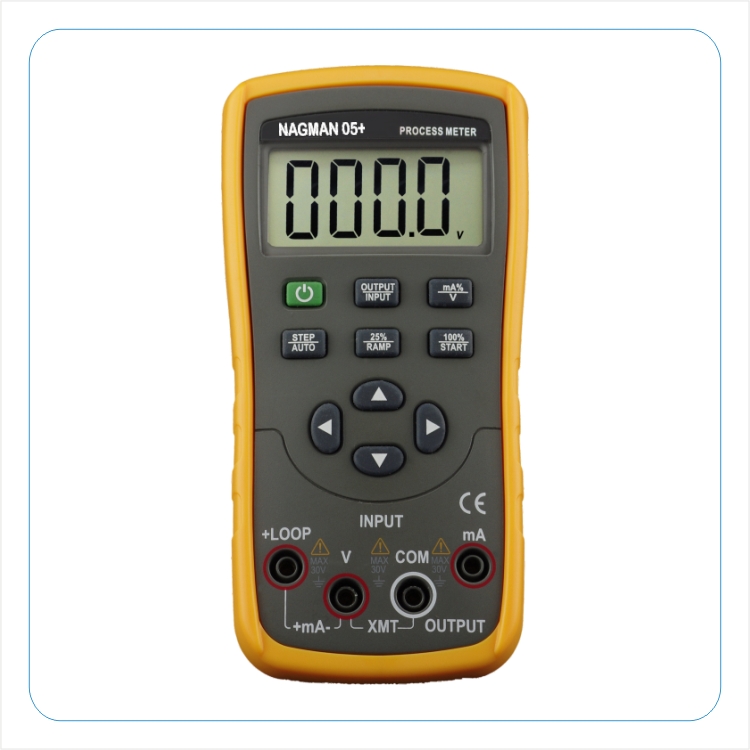

Nagman 05+ Process Meter (±0.05% Rdg)

  • 制造商: Nagman
    Model: 05+
    来源: India
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




*Input/ Range/ Input range/ Resolution/ Accuracy/ Remarks:

+ Voltage/ 28 V/ -0.2 to 28 V/ 1 mV/ ±0.02% reading ±2 mV/ Input Resistance about 1MW

+ Current/ 20 mA/ -1 to 22 mA/ 0.001 mA/ ±0.02% reading ±4 mA/ Input Resistance about 20W

+ Loop Current/ 20 mA/ 0 to 22 mA/ 0.001 mA/ ±0.02% reading ±4 mA/ Providing Supply 24V Loop Powerexciting Current

Output/ Range/ Input range/ Resolution/ Accuracy/ Remarks:

+ Current (DC)/ 20 mA/ 0 to 22 mA/ 0.001 mA/ ±0.05% set value ±4 mA/ Maximum overload is 1 kW at 20 mA

+ Simulator Transmitter/ -20 mA/ 0 to -22 mA/ 0.001 mA/ ±0.05% set value ±4 mA/ Maximum overload is 1 kW at 20 mA

+ Loop Power/ 24 V/ —/ —/ ±10%/ Maximum output current upto 25 mA

Standard delivery:

Process Meter – Model : Nagman 05+

5V ‘AA’ Alkaline Batteries (2 Nos.)

Operation Manual

Test Leads

Traceable Calibration Certificate

Optionals:

Calibration Certificate from NABL Accredited –as per ISO/IEC 17025:2005 Laboratory


Details

Datasheet
